Transformer solutions for battery energy storage systems, PCS stations, containerized BESS, and grid-connected energy storage projects.
We help developers, EPC contractors, system integrators, and electrical consultants select suitable dry type or oil immersed transformers based on PCS configuration, bidirectional power flow, installation environment, thermal design, and project specifications.
BESS projects may use dry type or oil immersed transformers depending on system architecture and installation location. Dry type transformers are often suitable for indoor rooms, containerized BESS, and fire-sensitive areas. Oil immersed transformers may be used for outdoor centralized step-up stations or larger grid-connected systems. Selection should consider PCS voltage, bidirectional power flow, harmonic content, frequent charge-discharge cycles, temperature rise, ventilation, fire safety, monitoring interfaces, grounding method, and project specifications.
Battery energy storage systems require transformers to connect PCS or inverter output to the required low-voltage or medium-voltage distribution level. In many projects, the transformer provides voltage adaptation between the PCS and the grid-side collection system, while also supporting grounding arrangement, protection coordination, and safe system integration.
Unlike conventional one-direction power distribution, BESS systems operate with bidirectional power flow. During charging, energy flows from the grid or renewable source into the battery system. During discharging, energy flows from the battery system back to the grid or load. This operating pattern makes transformer selection more complex than a standard distribution transformer.
BESS transformers may also face frequent load changes, PCS switching effects, harmonic content, thermal cycling, limited container ventilation, fire safety requirements, and monitoring interface needs. A suitable transformer should be selected based on the actual PCS system design, operating mode, installation environment, and grid connection requirements.
PCS equipment may output low-voltage AC, while the grid connection or collection system may require medium voltage. Transformers adapt PCS output voltage to the required system voltage for grid connection or plant distribution.
BESS systems charge and discharge, so the transformer must operate reliably when power flows in both directions. Thermal performance, grounding method, protection coordination, and monitoring should be reviewed for this operating condition.
PCS and inverter systems may introduce harmonic currents, switching effects, or non-sinusoidal components. Transformer heating, losses, insulation stress, and noise should be evaluated according to PCS data and project requirements.
Many BESS projects use containerized designs with limited space and ventilation. Transformer size, heat dissipation, enclosure protection, cable entry, airflow, and maintenance access must be coordinated with the container layout.
Energy storage projects often have strict safety requirements. Transformer type, insulation system, temperature monitoring, alarm contacts, trip signals, and remote monitoring interfaces should be selected according to the project safety strategy.
A typical BESS power system includes battery racks, battery management systems, DC protection, PCS or bidirectional inverters, transformers, AC switchgear, energy management systems, auxiliary power systems, and grid interconnection equipment. Depending on the project size, the transformer may be located inside a container, in a skid-mounted PCS station, in an outdoor transformer yard, or in a central substation.
Some BESS projects use one transformer per PCS block, while larger projects may combine several PCS units through one transformer or use a centralized step-up transformer for grid connection. The best arrangement depends on PCS rating, voltage level, redundancy strategy, container layout, and grid connection requirements.
Battery racks store electrical energy and are managed by the battery management system. DC protection and control equipment connect the battery system to the PCS.
The PCS converts DC power from the battery into AC power during discharge and converts AC power into DC power during charging.
The transformer adapts PCS AC voltage to the required system voltage, provides electrical interface coordination, and supports grounding and protection requirements.
AC switchgear provides switching, protection, metering, isolation, and connection between transformer output and the rest of the power system.
In larger BESS projects, multiple transformer blocks may connect to a medium-voltage collection system before reaching the main substation.
The EMS coordinates charging, discharging, grid support, frequency regulation, peak shaving, renewable integration, or backup operation.
The BESS connects to the utility grid, renewable plant, industrial facility, microgrid, or commercial load according to project requirements.
Engineering Notes
In BESS projects, the transformer is usually located between the PCS and the AC distribution or medium-voltage collection system. It must be matched with PCS output voltage, grid voltage, system grounding, protection settings, short-circuit level, harmonic conditions, and thermal requirements.
For containerized or indoor systems, dry type transformers may be preferred because they avoid insulating oil and can be integrated with temperature monitoring and alarm contacts. For outdoor centralized step-up applications or larger grid-connected systems, oil immersed transformers may be used when oil containment, fire protection, and environmental conditions are properly addressed.
Transformer selection for BESS should begin with the PCS architecture. The transformer must match PCS voltage, rated power, overload condition, harmonic profile, charging and discharging operation, grounding arrangement, protection design, cooling method, installation location, and communication or monitoring requirements.
Neither dry type nor oil immersed transformers should be selected by default without reviewing the project. Dry type transformers are often suitable for indoor, containerized, and fire-sensitive installations. Oil immersed transformers may be more suitable for outdoor, centralized, larger-capacity, or utility-side step-up applications.

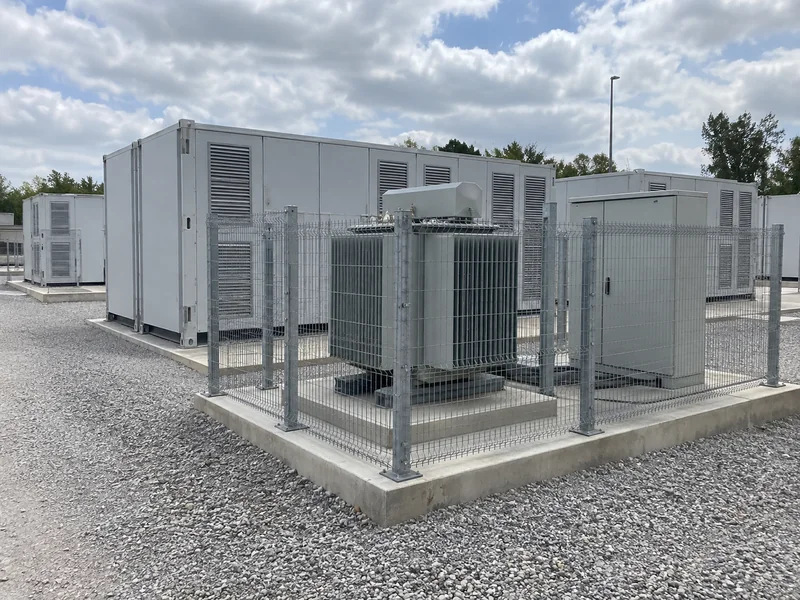

Oil immersed transformers can be suitable for BESS projects when the transformer is installed outdoors, in a centralized transformer station, or at the grid connection side of a larger energy storage project. They may be used to step up PCS output or collection voltage to medium voltage, such as 10kV, 11kV, 22kV, 33kV, or other project-specific levels.
Oil immersed transformers offer practical advantages for outdoor installation, larger capacity, continuous operation, and efficient cooling. They can be equipped with oil temperature indicators, winding temperature indicators, pressure relief devices, oil level indicators, Buchholz relays where applicable, marshalling boxes, and remote signal contacts.
However, BESS projects often have strict fire safety and environmental requirements. Oil immersed transformer use should consider oil containment, fire separation, leakage inspection, environmental protection, corrosion resistance, maintenance access, and local regulations.
Dry type transformers, especially cast resin transformers, are suitable for BESS projects where indoor installation, containerized design, oil-free operation, low maintenance, and fire safety are important. They may be installed inside electrical rooms, PCS rooms, BESS containers, skid-mounted systems, or fire-sensitive areas.
Dry type transformers can be configured with temperature controllers, PT100 sensors, cooling fans, alarm contacts, trip contacts, enclosure protection, and optional monitoring interfaces. These features are useful for BESS systems where thermal monitoring and integration with control systems are required.
However, dry type transformers in BESS applications require careful review of ventilation, ambient temperature, enclosure design, heat dissipation, harmonics, load cycling, and dust or moisture exposure. In compact containers, thermal design and airflow coordination are especially important.
| Factor | Oil Immersed | Dry Type | Recommendation |
|---|---|---|---|
| Installation Location | Suitable for outdoor transformer stations and centralized step-up areas | Suitable for indoor rooms, containers, skids, and fire-sensitive areas | Select based on installation location and fire safety strategy |
| Capacity Range | Suitable for larger capacity and outdoor grid-side applications | Suitable for PCS block transformers and indoor/containerized systems | Match capacity with PCS rating and operating mode |
| Bidirectional Power Flow | Suitable if designed for BESS charging and discharging operation | Suitable if thermal and harmonic conditions are reviewed | Confirm bidirectional operation with PCS data |
| Harmonic Conditions | Requires review of PCS harmonic impact on heating and losses | Also requires harmonic and thermal review | Provide PCS harmonic data where available |
| Fire Safety | Requires oil containment and fire separation review | No insulating oil, often preferred for compact or indoor systems | Dry type is often preferred for containerized or indoor BESS |
| Temperature Rise | Good cooling performance outdoors when properly designed | Requires careful ventilation and fan control in compact spaces | Review temperature rise, airflow, and ambient condition |
| Monitoring Interface | Oil and winding temperature signals can be provided | PT100, temperature controller, fan control, alarm and trip contacts available | Define monitoring signals at RFQ stage |
| Maintenance | Requires oil inspection and leakage checks | Lower oil-related maintenance but requires cleaning and ventilation checks | Choose according to O&M strategy and site access |
Selection Summary
For BESS projects, dry type transformers are commonly considered for indoor installations, containerized systems, PCS rooms, skid-mounted solutions, and fire-sensitive areas. They offer oil-free operation, lower routine maintenance, and convenient temperature monitoring options.
Oil immersed transformers may be suitable for outdoor centralized step-up stations, larger energy storage plants, and utility-side grid connection applications where high capacity, outdoor operation, and efficient cooling are required. The final selection should be based on PCS data, voltage ratio, bidirectional operation, harmonic content, installation environment, fire safety design, monitoring requirements, and project specifications.
BESS transformer buyers are usually concerned about system integration risk rather than the transformer alone. The main concerns include PCS compatibility, harmonic heating, bidirectional operation, frequent charge-discharge cycles, temperature rise, container ventilation, fire safety, monitoring signal integration, project documentation, FAT, and grid connection approval.
PCS output may contain harmonic components that increase transformer losses, heating, noise, or insulation stress.
We recommend reviewing PCS harmonic data, thermal margin, winding design, impedance, temperature rise, and any derating requirements before selection.
The transformer may be selected like a standard one-way distribution transformer without considering both charging and discharging operation.
We review the BESS operating mode, PCS rating, charging and discharging power, grounding arrangement, protection coordination, and thermal performance.
Repeated load changes may create thermal cycling and long-term stress on transformer insulation and accessories.
We help consider duty cycle, load variation, temperature rise, cooling method, fan control, and monitoring signals based on project operating requirements.
Transformers installed inside containers or compact skids may overheat if airflow and heat dissipation are not designed properly.
We review transformer losses, cooling method, enclosure design, ventilation path, clearance, fan operation, and ambient temperature before final configuration.
BESS projects have strict safety expectations, and the customer may worry about oil-filled equipment near battery containers.
We recommend dry type transformer options for indoor, compact, or fire-sensitive areas, while oil immersed options can be reviewed for outdoor separated installations.
The project may require temperature alarms, fan signals, trip contacts, or remote monitoring, but these are sometimes omitted during procurement.
We define temperature sensors, alarm contacts, trip contacts, fan control, terminal wiring, and optional remote interface during the quotation stage.
Missing datasheets, drawings, test reports, wiring diagrams, or compliance statements can delay consultant review, FAT, or grid connection.
We provide technical documents, routine test reports, accessory wiring diagrams, nameplate data, inspection records, and FAT documents according to project requirements.
BESS transformer selection can be difficult because the transformer operates with power electronics, bidirectional power flow, compact installation layouts, frequent operating changes, and strict safety requirements. Problems often happen when a BESS transformer is treated as a standard distribution transformer without reviewing PCS data and system architecture.
Without PCS output voltage, rated power, harmonic data, overload characteristics, and grounding requirements, the transformer may not match the system correctly.
Provide PCS datasheet, single-line diagram, operating mode, voltage ratio, grounding arrangement, and protection requirements before quotation.
BESS systems charge and discharge, so power flow is not always in one direction. This can affect protection, grounding, thermal design, and system studies.
Confirm charging and discharging power, operating scenarios, system grounding, and protection coordination during transformer selection.
PCS-related harmonics can increase winding heating, losses, sound level, and insulation stress if not considered.
Review harmonic data, K-factor or derating requirements if specified, transformer thermal design, and project power quality requirements.
Containerized installations may have limited airflow, and dry type transformers release heat into the surrounding space.
Confirm transformer losses, clearance, air inlet and outlet design, cooling fan operation, maximum ambient temperature, and container HVAC strategy.
Oil-filled equipment may create additional fire safety and separation requirements in BESS layouts.
Review fire safety distance, oil containment, local regulations, project safety strategy, and consider dry type transformers for compact or indoor areas.
Missing alarm or trip contacts may cause integration problems with EMS, SCADA, fire systems, or facility monitoring platforms.
Define temperature sensors, alarm levels, trip contacts, fan status, terminal blocks, and communication interface requirements before ordering.
A lower initial price may come with higher losses, insufficient monitoring, unsuitable enclosure, or poor thermal margin for frequent operation.
Compare transformer losses, temperature rise, harmonic suitability, monitoring accessories, test scope, documentation, and lifecycle performance.
In BESS projects, each stakeholder reviews the transformer from a different perspective. The project owner focuses on safety and revenue performance, the system integrator focuses on PCS compatibility, the EPC contractor focuses on layout and delivery, the consultant focuses on compliance, and the O&M team focuses on monitoring and maintainability.
Project safety, grid connection schedule, availability, lifecycle losses, revenue performance, and long-term operating risk.
A transformer solution that matches the BESS architecture, supports safe operation, and provides clear documents for approval and investment review.
PCS compatibility, container layout, cable connection, foundation, cooling design, delivery schedule, and FAT coordination.
Accurate datasheets, general arrangement drawings, terminal arrangement, weight, dimensions, wiring diagrams, and clear technical interface information.
Voltage ratio, vector group, impedance, grounding method, short-circuit level, harmonic impact, losses, temperature rise, insulation level, and applicable standards.
Complete technical documents, test reports, standard references, compliance statements, and confirmation of deviations if any.
Temperature monitoring, alarms, trip signals, fan control, oil inspection if applicable, cleaning, ventilation, access clearance, and spare parts.
Monitoring device details, alarm and trip contact wiring, maintenance manual, inspection checklist, spare parts information, and practical site access guidance.
Technical compliance, scope clarity, inspection requirements, document completeness, packing, shipment, and commercial risk.
A clear quotation, approved technical scope, document list, inspection plan, packing information, and agreed supply boundaries.
The following configurations are general references for BESS transformer applications. Final selection should be confirmed according to PCS datasheets, single-line diagram, battery system architecture, installation environment, grid connection requirements, harmonic conditions, fire safety design, and project specifications.
Containerized BESS with indoor or compact transformer space
Outdoor centralized step-up station for utility-scale BESS
PCS transformer for bidirectional charging and discharging operation
Indoor electrical room or skid-mounted BESS system
Auxiliary power supply for BESS control system, HVAC, lighting, and fire protection
Configuration Notes
The above configurations are preliminary references only. Final transformer type, capacity, voltage ratio, vector group, impedance, insulation level, grounding method, cooling method, enclosure or tank protection, temperature rise, harmonic suitability, monitoring signals, accessories, and testing scope should be confirmed according to PCS data, project specification, single-line diagram, installation environment, fire safety strategy, and grid connection requirements.
For BESS projects, transformer documentation is essential for system integration, EPC approval, grid connection review, safety assessment, factory acceptance testing, installation, commissioning, and final handover. Complete documents help reduce risks related to PCS mismatch, monitoring integration, thermal design, and acceptance delays.
Includes rated capacity, voltage ratio, frequency, vector group, impedance, insulation level, cooling method, temperature rise, losses, sound level, enclosure or tank design, accessories, and applicable standards.
Shows transformer dimensions, weight, lifting points, enclosure or tank details, terminal arrangement, cable entry direction, accessories, and installation clearance.
Provides base dimensions, fixing points, floor loading, skid interface, container interface, oil containment reference if applicable, and installation footprint.
Confirms rated electrical parameters, voltage ratio, vector group, impedance, cooling method, standard reference, weight, and transformer identification data.
Helps confirm transformer position between PCS, AC switchgear, medium-voltage collection system, auxiliary systems, and grid connection point.
Confirms transformer compatibility with PCS voltage, power rating, grounding method, harmonic conditions, overload requirements, and protection arrangement.
Records factory test results such as winding resistance, voltage ratio, vector group, impedance, load loss, no-load loss, insulation resistance, applied voltage test, and induced voltage test.
Provides supporting evidence for temperature rise, lightning impulse, short-circuit withstand, partial discharge for dry type transformers, or other tests when required.
Confirms transformer thermal performance under specified test conditions when requested by the project.
Provides technical review notes where PCS harmonic conditions or special derating requirements are specified by the project.
Shows wiring for temperature sensors, fan control, alarm contacts, trip contacts, oil or winding temperature devices, marshalling box, and terminal blocks.
Lists PT100 sensors, temperature controller, cooling fans, alarm contacts, trip contacts, oil temperature indicators, winding temperature indicators, pressure relief devices, or other specified accessories.
Provides guidance for transportation, storage, lifting, installation, ventilation, energization, inspection, cleaning, oil maintenance if applicable, and safety precautions.
Defines FAT test items, witness points, acceptance criteria, inspection responsibilities, and reporting format before shipment.
Identifies transformer body, accessories, spare parts, document package, packing method, shipping marks, handling instructions, and shipment details.
Routine tests should be performed according to the agreed standard and project specification. Typical tests include winding resistance, voltage ratio, vector group, impedance, load loss, no-load loss, insulation resistance, applied voltage test, and induced voltage test.
Temperature sensors, controllers, fan control, alarm contacts, trip contacts, oil or winding temperature devices, and monitoring terminals should be checked according to the approved wiring diagram.
The transformer should be checked against approved drawings, including dimensions, terminals, cable entry, enclosure or tank, accessories, paint finish, lifting points, nameplate, and installation interface.
Depending on the project specification, temperature rise test, partial discharge test for dry type transformers, sound level test, lightning impulse test, or short-circuit withstand reference may be required.
Before shipment, packing condition, accessory boxes, moisture protection, oil sealing if applicable, document package, shipping marks, and handling instructions should be verified.
Approval Notes
For an accurate BESS transformer proposal, customers are encouraged to provide the project specification, single-line diagram, PCS datasheet, PCS output voltage, rated power, overload requirement, charging and discharging mode, harmonic data if available, grid connection voltage, frequency, vector group, impedance requirement, grounding method, installation location, container or skid layout, ambient temperature, ventilation condition, fire safety requirement, monitoring signal list, applicable standard, and FAT requirements.
The following transformer products are commonly recommended for BESS and energy storage projects. Final product configuration should be confirmed against PCS data, project specifications, and consultant approval.
Suitable for indoor BESS rooms, containerized systems, PCS rooms, skid-mounted systems, and fire-sensitive areas where oil-free transformer installation is preferred.
Designed for voltage adaptation between PCS equipment and AC distribution or medium-voltage collection systems in energy storage projects.
Suitable for outdoor centralized step-up stations, grid-connected BESS plants, and larger-capacity energy storage projects.
Suitable for BESS projects requiring temperature sensors, fan control, alarm contacts, trip contacts, and integration with monitoring systems.
Suitable for BESS auxiliary loads such as control systems, HVAC, lighting, fire protection, communication, and station service equipment.
Background reading to help BESS developers, system integrators, EPC contractors, and consultants prepare a clearer transformer specification for energy storage projects.
Transformer Selection for BESS and PCS Systems
Learn how PCS voltage, bidirectional operation, harmonics, grounding, and monitoring affect transformer selection for energy storage projects.
Dry Type Transformer for Containerized Energy Storage
Understand how ventilation, temperature rise, enclosure design, and fire safety affect dry type transformers in containerized BESS.
Oil Immersed Transformer for Grid-Connected BESS
Learn when oil immersed transformers are suitable for outdoor centralized step-up stations and large-scale energy storage projects.
PCS Harmonics and Transformer Thermal Design
Explains why PCS harmonics, load cycling, impedance, and temperature rise should be reviewed before transformer selection.
Transformer Documents Required for BESS Projects
A practical document checklist for EPC review, grid connection approval, FAT, commissioning, and project handover.
The following FAQs answer common questions from BESS developers, system integrators, EPC contractors, consultants, and procurement teams when selecting transformers for energy storage projects.
BESS projects may use either dry type or oil immersed transformers depending on system architecture and installation location. Dry type transformers are commonly considered for indoor rooms, containerized energy storage systems, PCS rooms, and fire-sensitive areas because they do not use insulating oil. Oil immersed transformers may be used for outdoor centralized step-up stations, larger grid-connected systems, or utility-side applications. The final selection should consider PCS voltage, bidirectional power flow, harmonic content, installation environment, fire safety, monitoring requirements, and project specifications.
PCS data is essential because the transformer must match PCS output voltage, rated power, overload capability, grounding arrangement, harmonic characteristics, and operating mode. Without PCS data, the transformer may be incorrectly selected for voltage ratio, capacity, impedance, thermal performance, or protection coordination. Since BESS systems charge and discharge, the transformer should also be reviewed for bidirectional power flow. Providing the PCS datasheet and single-line diagram during the RFQ stage helps reduce design changes and approval delays.
Yes, dry type transformers can be used in containerized BESS when the design properly addresses ventilation, heat dissipation, clearance, enclosure protection, fire safety, and monitoring. Dry type transformers do not contain insulating oil, which is useful for compact or fire-sensitive installations. However, they release heat into the surrounding space, so the container HVAC or ventilation system must be coordinated with transformer losses and cooling method. Temperature sensors, fan control, alarm contacts, and trip contacts are often recommended for containerized BESS applications.
Oil immersed transformers may be used for BESS projects when the transformer is installed outdoors, in a centralized step-up station, or at the grid connection side of a larger energy storage project. They are suitable for higher capacity, outdoor operation, and efficient cooling when properly designed. However, oil containment, fire separation, leakage inspection, environmental protection, and maintenance access must be considered. In compact containerized or indoor BESS areas, dry type transformers may be more suitable because they avoid insulating oil.
PCS equipment may introduce harmonic currents and power electronics effects that increase transformer heating, losses, noise, and insulation stress. If these conditions are not reviewed, the transformer may operate at a higher temperature than expected. The supplier should review PCS harmonic data, project power quality requirements, transformer thermal design, impedance, and possible derating requirements where applicable. Harmonic considerations are especially important in compact installations where ventilation is limited and temperature rise must be controlled.
Common monitoring options include winding temperature sensors, digital temperature controllers, cooling fan control, over-temperature alarm contacts, trip contacts, fan status signals, oil temperature indicators for oil immersed units, winding temperature indicators, and marshalling box terminals. Some projects may also require remote signal output for EMS, SCADA, or facility monitoring systems. The required monitoring points, signal type, alarm levels, and wiring terminals should be confirmed during the RFQ stage so they can be included in the transformer design and wiring diagram.
Common documents include the technical datasheet, general arrangement drawing, nameplate drawing, foundation or installation drawing, routine test report, wiring diagram, accessory list, monitoring signal list, installation and maintenance manual, compliance statement, and FAT procedure. Depending on the project, type test references, temperature rise test reports, harmonic review documents, sound level test reports, or grid connection documents may also be required. Confirming the document list early helps reduce EPC review, consultant approval, and commissioning delays.
To prepare an accurate quotation, provide the project specification, single-line diagram, PCS datasheet, PCS output voltage, rated power, overload requirement, charging and discharging mode, harmonic data if available, grid voltage, frequency, vector group, impedance requirement, grounding method, installation location, ambient temperature, container or skid layout, ventilation condition, fire safety requirement, monitoring signal list, applicable standard, and FAT scope. Clear information helps select a transformer that matches the actual BESS system.
