TRANSFORMER APPLICATION

Transformers for Public Infrastructure

Prepare a transformer enquiry around the public service, the actual loads and the installation. Water treatment works, pumping stations and civic facilities have different operating patterns and site constraints. Separate the equipment requirement from the wider standby-power and service-continuity plan, then agree the documents, interfaces and responsibilities needed for a useful technical and commercial comparison.

Discuss Your Project

Start with your project task

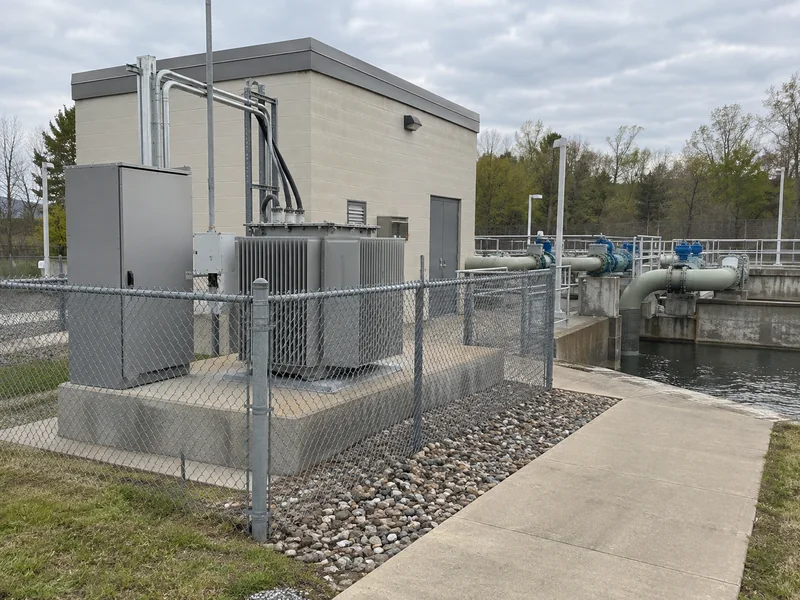

Supply a water or wastewater facility

A pumping station or treatment facility can combine pumps, blowers, drives, controls and building services. The electrical requirement depends on how these loads operate together, not only on the number of machines or their nameplate power.

Send these inputs: Facility description, supply diagram, voltage and frequency, motor and drive datasheets, running and starting scenarios, operating hours, measured demand where available, and the owner's identified essential loads.
Review and coordination: Establish the transformer duty from the agreed load information. Record motor-starting and drive-related questions for the electrical assessment. Identify interfaces with motor control centres, standby supplies and monitoring without assuming that a transformer quotation includes those systems.
Expected output: A facility-specific enquiry basis that distinguishes equipment duty, missing machine data and the system interfaces requiring confirmation before configuration and price are finalized.

Discuss This Task

Equip a public service building

A civic building, public office, school or service centre may have equipment rooms close to occupied areas. Space, noise, ventilation and access can be as important to the procurement decision as the electrical rating.

Send these inputs: Approved load schedule, incoming supply requirements, room plan, lifting and delivery route, cable or busbar arrangement, sound requirements, fire-safety design constraints, ventilation information and the reviewing authority or consultant's specification.
Review and coordination: Compare the proposed transformer construction with the actual building arrangement. Coordinate dimensions, heat release, maintenance space and monitoring signals. Do not treat the words dry type or indoor as automatic evidence of approval for every public building.
Expected output: A coordinated equipment brief showing the installation constraints, documents needed for review, and any unresolved building or authority requirements that affect the proposed offer.

Discuss This Task

Replace or extend an operating public facility

An existing installation may need replacement equipment, more capacity or an additional supply section while the operator manages restricted work windows. Matching the old kVA alone does not establish compatibility or confirm that the original duty is unchanged.

Send these inputs: Existing nameplate and drawings, present and proposed loads, terminal and foundation details, photographs where available, access restrictions, planned work stages, operator requirements and the current specification revision.
Review and coordination: Separate like-for-like interfaces from changed electrical or environmental requirements. Confirm what can be checked from records and what needs a site survey. Record the operator's transition and commissioning constraints without promising a particular outage duration.
Expected output: A replacement or extension scope with configuration questions, interface checks and a document schedule, allowing procurement and the site team to resolve differences before delivery.

Discuss This Task

Conditions that affect configuration

Pump starting, drive inputs and operating duty

Running demand and motor starting are different conditions. Drive-fed equipment also needs its actual input and operating information considered. A simple total of motor kW is not a complete basis for transformer selection.

Information to provide: Provide the largest motor duties, starting methods and sequence, simultaneous loads, available drive input-current information and any power-quality assessment. Confirm which supply and protection questions the responsible designer will evaluate. Keep transformer energization and motor starting separate in the equipment brief.

Essential services and standby-supply interfaces

The loads needed during a power interruption may differ from normal operation. A transformer is one part of the distribution arrangement; it does not replace the agreed backup-power and transfer design.

Information to provide: Identify essential loads and show normal and alternate sources on the project diagram. State the transformer position relative to transfer equipment and define alarm or status interfaces. The designer and operator must coordinate system performance, commissioning and operational responsibilities.

Water exposure, site environment and equipment location

Wet sites require an assessment of actual exposure, including drainage and potential flooding. Outdoor placement or an enclosure description alone does not establish suitability for immersion or contaminated floodwater.

Information to provide: Supply the site survey and project flood-design criteria, equipment location, ambient temperature, humidity, condensation, dust or corrosive exposure. Ask the responsible civil and electrical teams to coordinate protection and access. Any hazardous-area classification must be separately identified; ordinary distribution equipment must not be assumed suitable.

Occupied areas, cooling and maintenance access

Public facilities need practical arrangements for inspection and eventual equipment removal. Sound requirements, heat release and restricted access should be resolved with the room and site design rather than left to delivery.

Information to provide: Confirm room ventilation, specified sound limits, working space, door openings, lifting route, cable entry, monitoring contacts and auxiliary supplies. For liquid-filled equipment, include the project's fluid-containment and fire-safety requirements. Review maintenance information with the operator and distinguish equipment supply from building works.

Explore suitable product options

Dry-type transformers

Explore dry-type equipment where the proposed building or enclosed installation supports it. Review the specific duty, thermal conditions, ventilation, sound, enclosure and maintenance requirements. Oil-free construction is not a substitute for project fire-safety review or approval of the complete installation.

Review product range

Oil-immersed transformers

Explore liquid-filled equipment for an appropriately designed plant or outdoor supply arrangement. Confirm configuration, terminals, cooling and accessories alongside site access, containment and environmental conditions. A water-sector application does not by itself establish flood resistance, corrosion performance or public-utility approval.

Review product range

Documents by project stage

Enquiry and comparable offers

Provide the current specification, load basis, site information and required submission list. Ask each offer to identify included equipment, accessories, documents, assumptions and deviations. Keep tender reference and revision visible so the owner, contractor and supplier are comparing the same requirement rather than different interpretations.

Stage: quotation

Configuration and installation review

Coordinate the offered configuration's datasheet, general arrangement, weight, foundation interfaces, terminals and accessory wiring with the project design. Agree applicable evidence, inspection points and test scope before treating documents as approved. A sample drawing or another project's report does not confirm the current unit's suitability.

Stage: design approval

Inspection and operator handover

Agree the final drawing and identification records, applicable test reports, accessory information and installation and maintenance instructions. Identify required document language, copies and revision status. Public-owner acceptance, site commissioning and operational procedures remain separate from a factory test and should have named responsible parties.

Stage: delivery

Scope and coordination

The transformer offer covers only the equipment, documents and services expressly included. Hydraulic or process design, power-system studies, standby generation, switching and protection, civil flood measures, building services and operating procedures are not automatically part of supply. The project team confirms those interfaces and local requirements. Equipment selection or a successful factory test is not a guarantee of uninterrupted water supply or public-service operation.

Questions before requesting a quotation

Can a pumping-station transformer be selected from total motor kW?

Not from that figure alone. Send the supply requirements, actual running and starting conditions, machine sequence and drive data. Unknown information should remain an open question. The proposed transformer must be assessed against the agreed duty and its interfaces with the supply system.

Does a larger transformer remove the need for standby power?

No. Increasing capacity does not create an alternative energy source or complete a transfer arrangement. The public owner and design team should define the required service level and the associated backup system separately, then coordinate the transformer's role within that design.

Is outdoor transformer equipment automatically suitable for a flood-prone site?

No. Confirm the actual environmental rating and installation conditions, and have the site risks assessed. Do not interpret weather protection as approval for submersion. Location, civil protection and emergency arrangements need their own project-specific review.

Are the same approval documents required for every public project?

No. Requirements depend on the owner, specification, reviewing parties and offered equipment. Send the applicable document list and revision with the enquiry. Agree the response, exceptions, drawing stages and test evidence rather than assuming every certificate or report is included and applicable.
