Dry type transformer solutions for metro stations, underground substations, railway stations, auxiliary power systems, station halls, platforms, and equipment rooms.
We help EPC contractors, rail transit companies, consultants, and electrical teams select safe, low-maintenance, indoor transformers for underground transport facilities.
Metro stations usually prefer dry type or cast resin transformers for indoor and underground power distribution because they are oil-free, lower maintenance, and easier to coordinate with fire safety requirements in enclosed public transport spaces. They are used for station auxiliary power, lighting, ventilation, escalators, pumps, communication systems, and equipment rooms. Selection should consider ventilation, temperature rise, humidity, condensation, dust, noise, vibration, enclosure protection, monitoring signals, maintenance access, project drawings, and rail authority specifications.
Metro stations require transformers to supply stable power for station lighting, ventilation fans, escalators, elevators, platform systems, pumps, communication equipment, signaling support systems, fire protection, ticketing equipment, security systems, and other auxiliary loads. Although traction power may be handled by separate dedicated systems, station service power still depends on reliable transformer-fed distribution.
Unlike ordinary buildings, metro stations are often underground, enclosed, and densely occupied. Electrical equipment must operate safely in spaces with limited ventilation, restricted access, high fire safety requirements, and strict operation schedules. A transformer problem may affect passenger safety, station services, emergency systems, or public transport operation.
Metro and railway projects also have strict approval processes. Consultants, rail transit companies, owners, regulatory authorities, and EPC contractors usually require detailed transformer drawings, technical datasheets, test reports, wiring diagrams, monitoring details, installation manuals, and FAT records before approval and handover.
Metro stations need transformers for lighting, ventilation, escalators, elevators, pumps, ticketing systems, communication equipment, security systems, fire protection systems, and station service distribution. A properly selected transformer supports stable operation of these auxiliary loads.
Underground metro stations are enclosed public spaces with high passenger density. Dry type transformers are commonly preferred because they do not contain insulating oil and help reduce oil-related fire and leakage concerns.
Metro station equipment rooms may have restricted airflow. Transformer losses, cooling method, enclosure design, room ventilation, and temperature monitoring must be coordinated to reduce overheating risk.
Underground environments may include humidity, condensation, dust, and poor air circulation. Transformer insulation, enclosure protection, heating or anti-condensation measures, cleaning access, and maintenance planning should be reviewed.
Metro projects require accurate drawings, compliance documents, routine test reports, wiring diagrams, accessory lists, and installation manuals. Incomplete documents may delay consultant approval, site installation, commissioning, or owner acceptance.
A typical metro station power system includes incoming medium-voltage supply, switchgear, station service transformers, low-voltage switchboards, emergency power systems, UPS systems, lighting distribution, ventilation power, escalator and elevator supply, pump panels, communication systems, and fire protection systems.

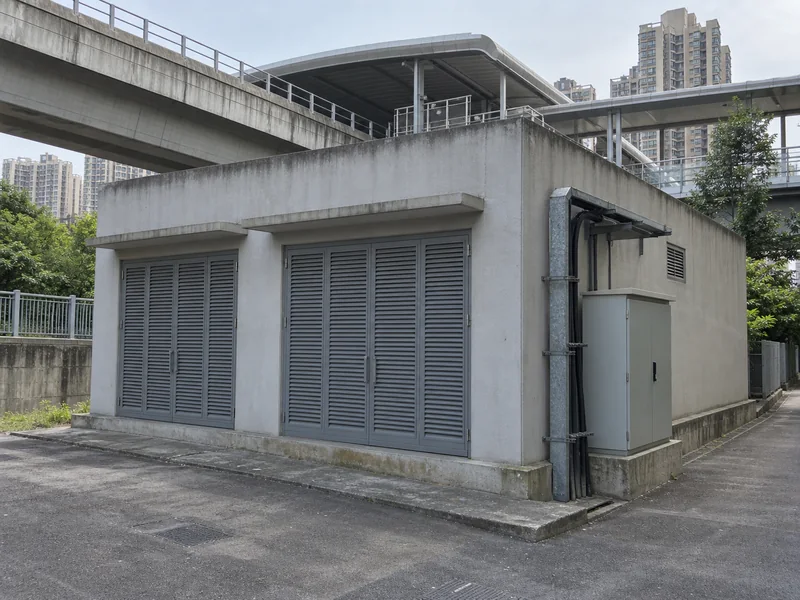

Transformers for metro stations are usually installed in underground electrical rooms, equipment rooms, station substations, or auxiliary power rooms. They may supply normal station loads, emergency loads, mechanical systems, public area services, and operation-related auxiliary equipment.
The metro station receives power from the utility grid, rail transit power network, or dedicated medium-voltage distribution system.
MV switchgear provides incoming protection, feeder control, isolation, and metering before power is supplied to station transformers.
The transformer steps down medium voltage to low-voltage levels used for station auxiliary loads, such as 400V, 415V, or project-specific voltage.
The LV switchboard distributes power to lighting, ventilation, pumps, escalators, elevators, communication systems, fire systems, and station service panels.
Emergency power systems, UPS equipment, or battery systems may support critical station loads such as emergency lighting, communication, control, and safety systems.
Ventilation fans, smoke extraction systems, drainage pumps, escalators, elevators, platform screen doors where applicable, lighting, and passenger service systems receive power from downstream panels.
Transformer temperature alarms, trip contacts, fan status, and electrical signals may be integrated with station monitoring, BMS, SCADA, or operation systems.
Engineering Notes
In metro station power systems, transformers are commonly installed between medium-voltage switchgear and low-voltage distribution boards for station service and auxiliary loads. They must be coordinated with ventilation design, fire safety requirements, cable routing, equipment room layout, emergency systems, grounding, and monitoring systems.
Dry type transformers are usually preferred for underground and indoor metro station applications because they are oil-free and lower maintenance. Oil immersed transformers are less common inside stations but may be used in outdoor substations or upstream power supply systems where fire separation, oil containment, and environmental requirements are properly addressed.
Transformer selection for metro stations should consider more than voltage and capacity. The correct solution depends on installation location, underground environment, fire safety requirements, ventilation condition, humidity, condensation risk, sound level, vibration, maintenance access, monitoring requirements, enclosure protection, consultant specifications, and rail authority standards.
Dry type and cast resin transformers are commonly selected for metro stations because they are suitable for indoor electrical rooms and enclosed public transport facilities. Oil immersed transformers may be considered for outdoor or upstream substations, but their use inside underground stations is usually limited by fire safety and oil containment concerns.
Oil immersed transformers may be suitable for metro or railway projects when they are installed outdoors, in a dedicated substation, or in an upstream power supply system with proper oil containment, fire separation, ventilation, and maintenance access. They may be used for main utility-side supply or rail power infrastructure where the project design allows oil-filled equipment.
Oil immersed transformers can provide higher capacity options, efficient cooling, and long-term operation for separated or outdoor installations. Accessories may include oil temperature indicators, winding temperature indicators, pressure relief devices, oil level indicators, Buchholz relays where applicable, marshalling boxes, and monitoring contacts.
However, oil immersed transformers are usually not preferred inside underground metro stations, station halls, platform areas, or enclosed public spaces because oil leakage and fire safety requirements are more difficult to manage.
Dry type transformers, especially cast resin transformers, are highly suitable for metro stations, subway stations, underground substations, station electrical rooms, and auxiliary power rooms. They do not use insulating oil, which helps reduce fire safety and oil leakage concerns in enclosed underground spaces.
For metro projects, dry type transformers can be configured with IP enclosures, temperature controllers, PT100 sensors, cooling fans, low-noise design, alarm contacts, trip contacts, anti-condensation options, and monitoring terminals. These functions support safe operation, remote monitoring, and limited maintenance windows.
Dry type transformer selection should still be reviewed carefully for temperature rise, ventilation, humidity, condensation, dust, enclosure rating, cable entry direction, room layout, vibration, sound level, and maintenance clearance.
| Factor | Oil Immersed | Dry Type | Recommendation |
|---|---|---|---|
| Underground Station Installation | Usually not preferred due to oil and fire safety concerns | Suitable for underground electrical rooms and auxiliary substations | Dry type is usually preferred for metro station interiors |
| Fire Safety | Requires oil containment, fire separation, and leakage control | No insulating oil, easier for underground fire safety design | Use dry type for enclosed passenger-dense facilities |
| Ventilation and Temperature | Good thermal performance outdoors but not ideal for enclosed spaces | Requires proper ventilation and temperature monitoring | Review room ventilation, losses, and cooling method |
| Humidity and Condensation | Outdoor design can be configured, but oil system and terminals need protection | Enclosure, resin insulation, space heater, and cleaning access may be required | Confirm humidity, condensation, and enclosure protection |
| Noise and Vibration | Often easier to isolate outdoors or in separate rooms | Low-noise dry type designs and anti-vibration measures available | Specify sound and vibration expectations early |
| Maintenance | Requires oil inspection and leakage checks | Lower oil-related maintenance, suitable for limited maintenance windows | Dry type is practical for station facility teams |
| Installation Space | May require more space for oil safety measures | Enclosed dry type units can be integrated into equipment rooms | Confirm GA drawing, cable entry, and foundation details |
| Approval Process | More review needed for underground or indoor use | Generally easier for rail consultant and owner approval indoors | Follow project specification and rail authority requirements |
Selection Summary
For most metro station and subway power distribution applications, dry type or cast resin transformers are the preferred choice. They are suitable for underground rooms, indoor substations, station service loads, and fire-sensitive public transport facilities because they are oil-free, lower maintenance, and easier to coordinate with fire safety requirements.
Oil immersed transformers may be used for outdoor substations or upstream rail power supply systems where the installation is separated from passenger areas and proper oil containment and fire protection are provided. Final selection should be confirmed according to project specification, rail authority requirements, single-line diagram, load schedule, ventilation design, humidity, enclosure protection, sound level, and maintenance strategy.
Metro station transformer buyers are concerned about public safety, operation continuity, underground fire safety, heat dissipation, humidity, noise, vibration, maintenance windows, monitoring signals, strict document review, and installation accuracy. A small transformer interface issue may delay station commissioning or create long-term operation problems.
Underground metro stations are enclosed and densely occupied, so oil-filled equipment may increase fire safety and approval risks.
We recommend cast resin dry type transformers for station indoor rooms, auxiliary substations, and fire-sensitive underground locations.
Underground equipment rooms may have poor airflow, increasing transformer operating temperature and alarm risk.
We review transformer losses, cooling method, temperature rise, room ventilation, enclosure design, fan control, and temperature monitoring.
Moisture, condensation, and dust may affect dry type transformer insulation surfaces, terminals, and cooling performance.
We consider IP enclosure, anti-condensation measures, space heater if required, cleaning access, resin insulation performance, and maintenance planning.
Transformer noise or vibration may affect station halls, platforms, control rooms, offices, or nearby commercial areas.
We can review low-noise design, anti-vibration pads, enclosure options, sound level limits, and installation location during selection.
Metro stations cannot frequently stop operation for transformer maintenance or inspection. Maintenance access may also be restricted.
We recommend low-maintenance dry type solutions with temperature monitoring, alarm contacts, clear maintenance guidance, and accessible terminal arrangements.
Rail projects often require transformer temperature alarms, fan control, trip signals, and monitoring interface, but these may be missed in early procurement.
We define PT100 sensors, temperature controller, fan status, alarm contacts, trip contacts, terminal blocks, and monitoring wiring during quotation.
Metro equipment rooms have limited space, and incorrect dimensions, cable entry direction, or foundation details can delay installation.
We provide accurate GA drawings, foundation drawings, enclosure dimensions, cable entry details, lifting information, and installation clearance data.
Metro station transformer selection often fails when the underground environment and approval process are underestimated. The transformer must be reviewed as part of a station electrical system, not only as a standard distribution product.
Oil-filled equipment may create fire safety, oil leakage, ventilation, and approval challenges in enclosed underground public spaces.
Use dry type or cast resin transformers for underground station electrical rooms unless the project specification clearly allows another solution.
Dry type transformers release heat into the room. If ventilation is insufficient, the transformer may run hot or trigger alarms.
Coordinate transformer losses, room airflow, cooling fans, ambient temperature, enclosure design, and temperature alarm settings.
Underground spaces may experience moisture and condensation that affect insulation surfaces, terminals, and metal parts.
Specify humidity conditions, enclosure rating, anti-condensation measures, space heaters if needed, and cleaning or inspection access.
Transformer noise or vibration may affect station public areas, control rooms, offices, or nearby buildings.
Define sound level limits and consider low-noise design, anti-vibration pads, room location, and acoustic treatment.
Without temperature controller, alarm contacts, fan control, or trip signals, the transformer may not integrate with station monitoring systems.
Confirm PT100 sensors, temperature controller, cooling fan logic, alarm contacts, trip contacts, and terminal wiring during RFQ.
Underground equipment rooms have limited space, and wrong cable entry direction can cause installation changes or delay.
Review GA drawings, MV and LV terminal positions, top or bottom cable entry, cable trench layout, and switchgear interface before production.
Rail transit projects require strict document review. Missing test reports, manuals, wiring diagrams, or compliance documents can delay commissioning.
Confirm the document list, FAT scope, approval workflow, and final handover package at the quotation stage.
Metro station transformer projects involve multiple stakeholders with different priorities. The rail transit owner focuses on public safety and operation continuity, the EPC contractor focuses on installation and schedule, the consultant focuses on compliance, and the operation team focuses on monitoring, low maintenance, and serviceability.
Public safety, fire safety, station operation continuity, approval schedule, maintainability, and long-term equipment reliability.
A transformer solution suitable for underground stations, with clear technical compliance, complete documents, and practical operation support.
Equipment room layout, installation space, cable entry, lifting route, ventilation, enclosure size, delivery schedule, and interface with switchgear.
Accurate GA drawings, foundation drawings, terminal arrangement, cable direction, dimensions, weight, wiring diagrams, and installation guidance.
Specification compliance, transformer rating, voltage ratio, vector group, impedance, losses, temperature rise, partial discharge, sound level, and standards.
Complete datasheets, test reports, type test references, compliance statements, technical drawings, accessory lists, and deviation notes if applicable.
Temperature monitoring, fan operation, alarms, trip signals, cleaning, ventilation, humidity control, inspection access, and limited maintenance windows.
Temperature controller details, monitoring signal wiring, maintenance manuals, cleaning guidance, spare parts recommendations, and accessible design.
Technical compliance, approval documents, inspection requirements, delivery risk, packing, shipment, and commercial scope.
A clear quotation, approved technical scope, document list, FAT plan, packing information, and defined supply responsibilities.
The following configurations are general references for metro station transformer applications. Final selection should be confirmed according to project specification, rail transit standards, single-line diagram, load schedule, underground environment, ventilation design, fire safety requirements, consultant comments, and owner approval.
Underground metro station electrical room or auxiliary substation
Station hall, platform auxiliary supply, or public-area equipment room
Ventilation fans, drainage pumps, escalators, elevators, and motor-driven station loads
Humid, dusty, or condensation-prone underground equipment room
Outdoor rail power substation or upstream supply system
Configuration Notes
The above configurations are preliminary references only. Final transformer type, rated capacity, voltage ratio, vector group, impedance, insulation level, cooling method, enclosure rating, temperature rise, sound level, vibration requirements, humidity protection, monitoring signals, accessories, test scope, and document package should be confirmed according to project specification, rail transit standards, single-line diagram, underground environment, ventilation design, consultant comments, and owner requirements.
For metro and rail transit projects, transformer documents are critical project deliverables. They support consultant review, rail transit company approval, regulatory submission, equipment room coordination, FAT, site installation, commissioning, operation training, and final handover. Incomplete documents can delay strict station acceptance milestones.
Includes rated capacity, voltage ratio, frequency, vector group, impedance, insulation level, cooling method, temperature rise, losses, sound level, enclosure, accessories, and applicable standards.
Shows transformer dimensions, weight, lifting points, enclosure details, terminal arrangement, cable entry direction, accessories, and required maintenance clearance.
Provides base dimensions, fixing points, floor loading, installation footprint, ventilation clearance, and equipment room coordination information.
Shows MV and LV terminal positions, top or bottom cable entry, cable box arrangement, terminal clearance, and switchgear interface details.
Confirms rated electrical parameters, voltage ratio, vector group, impedance, cooling method, standard reference, weight, and transformer identification data.
Helps confirm transformer position in the metro station power system and coordination with MV switchgear, LV switchboards, UPS, emergency power, and downstream loads.
Records factory test results such as winding resistance, voltage ratio, vector group, impedance, load loss, no-load loss, insulation resistance, applied voltage test, and induced voltage test.
Provides supporting evidence for temperature rise, lightning impulse, partial discharge, sound level, or short-circuit withstand tests when required by project specifications.
May be required for cast resin dry type transformers according to project specification or rail transit authority requirements.
Provides measured sound level data for metro station applications with acoustic or low-noise requirements.
Shows wiring for PT100 sensors, temperature controller, fan control, alarm contacts, trip contacts, terminal blocks, and monitoring interfaces.
Lists temperature controllers, PT100 sensors, cooling fans, alarm contacts, trip contacts, enclosure details, space heaters if required, and optional monitoring devices.
Confirms compliance with project specifications, rail transit standards, consultant requirements, and declared deviations if any.
Provides guidance for transportation, storage, lifting, installation, ventilation, energization, inspection, cleaning, maintenance, and safety precautions.
Includes FAT test items, witness points, acceptance criteria, approved drawings, final datasheets, test reports, manuals, inspection records, and handover documents.
Routine tests should be performed according to the agreed standard and project specification. Typical tests include winding resistance, voltage ratio, vector group, impedance, load loss, no-load loss, insulation resistance, applied voltage test, and induced voltage test.
For cast resin dry type transformers, partial discharge testing may be required by project specifications or rail transit authority requirements.
PT100 sensors, temperature controller, cooling fans, alarm contacts, trip contacts, fan status signals, and terminal wiring should be checked according to approved wiring diagrams.
The transformer should be checked against approved drawings, including dimensions, enclosure, cable entry, terminals, accessories, lifting points, nameplate, and installation interface.
Sound level testing may be included for low-noise requirements. Before shipment, packing condition, accessory boxes, documents, shipping marks, and handling instructions should be verified.
Approval Notes
For an accurate metro station transformer proposal, customers are encouraged to provide the project specification, rail transit standard, single-line diagram, load schedule, voltage ratio, rated capacity, frequency, vector group, impedance requirement, installation location, equipment room layout, ventilation condition, ambient temperature, humidity, condensation risk, dust level, enclosure requirement, sound level limit, monitoring signal list, cable entry direction, applicable standards, FAT scope, document list, consultant comments, and rail authority requirements.
The following transformer products are commonly recommended for metro and subway station power distribution. Final product configuration should be confirmed against project specifications, consultant comments, and rail authority requirements.
Suitable for underground station electrical rooms, auxiliary substations, equipment rooms, and indoor power distribution where fire safety and oil-free operation are important.
Designed for station environments where transformer noise and vibration should be controlled near public areas, platforms, control rooms, or offices.
Suitable for underground equipment rooms where enclosure protection, cable entry arrangement, ventilation coordination, and safe maintenance are required.
Suitable for subway and metro projects requiring oil-free indoor transformer solutions with low fire risk and low routine maintenance.
Suitable for outdoor or upstream rail power supply systems where oil-filled transformer installation is allowed by project design.
Background reading to help rail transit companies, EPC contractors, and consultants prepare a clearer transformer specification for metro station projects.
Dry Type Transformer for Underground Stations
Learn why dry type and cast resin transformers are commonly used in metro stations, subway substations, and underground electrical rooms.
Fire Safe Transformer Selection for Public Transport Projects
Understand why oil-free transformer design is important for underground, enclosed, and passenger-dense facilities.
Transformer Temperature Monitoring for Rail Projects
Explains PT100 sensors, temperature controllers, fan control, alarm contacts, trip contacts, and station monitoring interfaces.
Low Noise Transformer Selection for Metro Stations
Learn how transformer sound level, vibration, enclosure, and installation layout affect station comfort and operation.
Transformer Documents Required for Metro Project Approval
A practical checklist of datasheets, drawings, test reports, wiring diagrams, compliance statements, FAT records, and handover files.
The following FAQs answer common questions from rail transit companies, EPC contractors, consultants, MEP teams, and procurement managers when selecting transformers for metro station projects.
Dry type transformers, especially cast resin transformers, are commonly used in metro stations because they are suitable for indoor and underground electrical rooms. They do not use insulating oil, which helps reduce oil leakage and oil-related fire concerns in enclosed public transport spaces. Metro station transformers are often used for auxiliary power, lighting, ventilation, escalators, pumps, communication systems, and station service distribution. Oil immersed transformers may be used for outdoor or upstream substations, but they are usually not preferred inside underground station areas.
Dry type transformers are preferred for underground metro stations because they are oil-free, lower maintenance, and easier to coordinate with fire safety requirements in enclosed passenger environments. Underground stations have limited ventilation, high passenger density, and strict safety requirements. Dry type transformers can also be supplied with IP enclosures, temperature controllers, PT100 sensors, cooling fans, alarm contacts, trip contacts, and low-noise options. However, ventilation, humidity, condensation, dust, sound level, and maintenance clearance still need to be reviewed carefully.
Yes, oil immersed transformers can be used in some metro or rail projects, especially for outdoor substations, upstream power supply systems, or separated utility-side installations. They may be suitable where high capacity and outdoor operation are required. However, inside underground metro stations, oil immersed transformers are usually avoided because oil containment, fire separation, leakage control, and emergency safety requirements are more difficult to manage. The final choice should follow project specifications, rail authority requirements, local codes, and consultant approval.
Important features include oil-free dry type insulation, suitable capacity, correct voltage ratio, proper impedance, controlled temperature rise, low losses, IP enclosure, temperature monitoring, cooling fans, alarm contacts, trip contacts, low-noise design, and practical cable entry arrangement. For underground stations, ventilation, humidity, condensation, dust, and maintenance access are also important. The transformer should be reviewed together with the station single-line diagram, equipment room layout, rail project specification, and consultant requirements.
Dry type transformers release heat into the surrounding room, so ventilation is important in underground metro station equipment rooms. The project team should review transformer losses, temperature rise, cooling method, enclosure design, clearance, air inlet and outlet arrangement, room ambient temperature, and fan operation. If ventilation is insufficient, the transformer may operate at higher temperature or trigger alarms. Ventilation design should be coordinated with the MEP team before finalizing transformer capacity, enclosure, and room layout.
Metro station dry type transformers commonly require PT100 temperature sensors, a digital temperature controller, cooling fan control, over-temperature alarm contacts, trip contacts, fan status indication, and terminal blocks for remote monitoring. Some projects may require integration with BMS, SCADA, or station monitoring systems. These signals should be confirmed during the RFQ stage so the supplier can prepare the correct wiring diagram, terminal arrangement, and accessory list for consultant approval and site installation.
Common documents include technical datasheet, general arrangement drawing, foundation drawing, cable entry drawing, nameplate drawing, wiring diagram, accessory list, routine test report, type test reference, partial discharge test report if required, sound level test report if specified, compliance statement, installation and maintenance manual, FAT procedure, and final handover package. Metro projects often have strict consultant, owner, and authority review, so the document list should be confirmed early during RFQ or order confirmation.
To prepare an accurate quotation, provide the project specification, rail transit standard, single-line diagram, load schedule, rated capacity, voltage ratio, frequency, vector group, impedance requirement, installation location, equipment room layout, ventilation condition, ambient temperature, humidity, condensation risk, dust level, enclosure requirement, sound level limit, monitoring signal list, cable entry direction, applicable standards, FAT scope, document list, consultant comments, and rail authority requirements. Clear information helps reduce selection errors and approval delays.
