Transformer solutions for manufacturing plants, production lines, factory substations, motor loads, process equipment, and industrial power distribution systems.
We help factory owners, EPC contractors, electrical consultants, and procurement teams select suitable oil immersed or dry type transformers based on load profile, installation location, operating duty, environment, and project specifications.
Manufacturing plants may use both oil immersed and dry type transformers depending on capacity, load type, installation location, and safety requirements. Oil immersed transformers are often used for outdoor main substations, large-capacity supply, heavy-duty production loads, and continuous operation. Dry type transformers are suitable for indoor distribution rooms, clean factories, food and pharmaceutical plants, electronics facilities, and fire-sensitive areas. Selection should consider motor starting, VFDs, rectifiers, welding loads, harmonics, temperature rise, dust, humidity, corrosion, future expansion, maintenance access, and project specifications.
Manufacturing plants need transformers to supply stable power to production lines, motors, compressors, pumps, HVAC, process equipment, robots, conveyors, welding machines, rectifiers, control panels, lighting, cleanroom systems, packaging lines, and auxiliary services. Unlike ordinary building loads, factory loads may change quickly, start frequently, or operate continuously for long shifts.
For a manufacturing plant, transformer failure is not only an equipment issue. It can stop production, delay customer orders, damage materials in process, interrupt cleanroom conditions, affect machine calibration, and create high downtime cost. In many factories, the financial loss from unplanned shutdown can be much higher than the transformer purchase price.
Manufacturing plants also vary widely by industry. Electronics, food, pharmaceutical, and cleanroom facilities often prefer indoor dry type transformers for safety, cleanliness, and low maintenance. Heavy machinery, steel, cement, chemical, and large process plants may use oil immersed transformers for outdoor main supply, high capacity, and heavy-duty operation. The correct solution depends on the actual production process and electrical design.
Manufacturing plants depend on stable power for machines, conveyors, control systems, compressors, pumps, robotics, HVAC, and process equipment. Transformers must support continuous operation and avoid unnecessary production interruption.
Motors, VFDs, rectifiers, welding equipment, and production machinery may create starting current, harmonics, voltage fluctuation, and thermal stress. Transformer selection should consider real load characteristics, not only kVA rating.
Factories may include cleanrooms, food production areas, chemical workshops, dusty plants, high-temperature zones, humid rooms, or corrosive atmospheres. Transformer type, enclosure, cooling, coating, and maintenance plan should match the site.
Unplanned transformer failure can stop production and create major financial impact. Proper selection, monitoring, testing, and maintenance access help reduce operational risk.
Manufacturing plants often add machines, production lines, shifts, or automation systems after commissioning. Transformer capacity and distribution arrangement should consider reasonable future expansion without unnecessary oversizing.
A typical manufacturing plant power system includes utility supply, medium-voltage switchgear, main transformers, low-voltage or medium-voltage distribution boards, motor control centers, VFD panels, production line panels, rectifier systems, welding power systems, HVAC distribution, lighting panels, UPS systems, and auxiliary power.

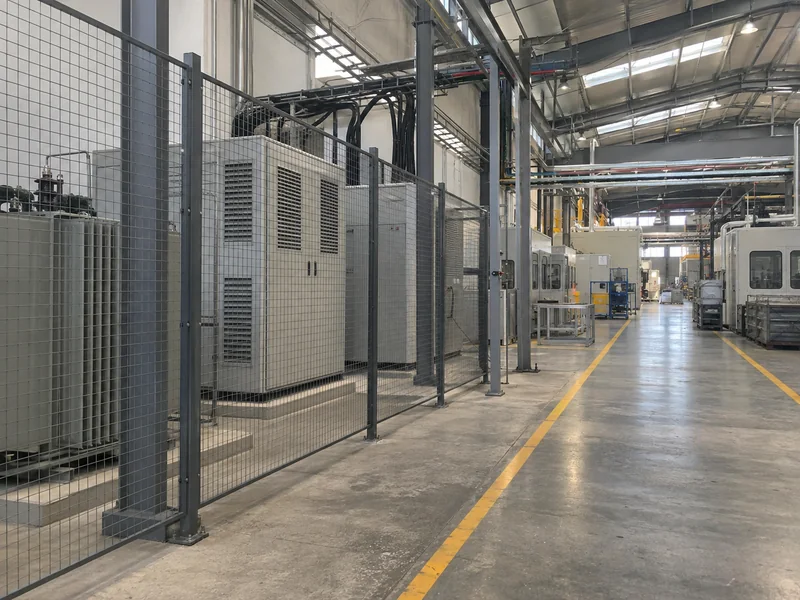

Transformers may be installed in outdoor main substations, indoor electrical rooms, production buildings, cleanroom support areas, utility areas, or near specific load centers. Some plants use one large main transformer, while others divide loads across multiple transformers to improve reliability, reduce cable distance, and separate sensitive loads from heavy production loads.
The factory receives power from the utility grid, dedicated feeder, generator system, or industrial park power network.
MV switchgear provides protection, metering, isolation, and feeder control before power is distributed to transformers.
The main transformer steps down incoming voltage to the plant distribution level, such as 400V, 415V, 480V, 690V, 3.3kV, 6.6kV, 11kV, or project-specific voltage.
Power is distributed to production areas, mechanical systems, cleanroom utilities, motor control centers, auxiliary systems, and building services.
Motor control centers, variable frequency drives, rectifiers, and automation panels supply motors, pumps, fans, compressors, process equipment, and production machinery.
Power is delivered to machines, robots, conveyors, welding stations, packaging lines, furnaces, CNC machines, cleanroom tools, or process equipment.
Lighting, HVAC, fire protection, compressed air, water systems, IT, UPS, security, and emergency systems receive power from dedicated panels or transformers where required.
Engineering Notes
In manufacturing plants, transformers may serve as main incoming transformers, workshop distribution transformers, load-center transformers, auxiliary transformers, or dedicated transformers for specific production processes. They must be coordinated with switchgear, protection devices, cable sizing, grounding, motor starting, harmonics, short-circuit level, and future expansion.
Oil immersed transformers are often used for outdoor main power supply and high-capacity heavy-duty applications. Dry type transformers are commonly used indoors, especially in electronics, food, pharmaceutical, cleanroom, commercial manufacturing, and fire-sensitive production environments.
Transformer selection for manufacturing plants should start from the load profile and installation environment. The correct solution depends on production process, motor starting, harmonic sources, continuous duty, ambient temperature, dust, humidity, corrosion, ventilation, fire safety, maintenance access, future expansion, and consultant requirements.
Oil immersed and dry type transformers both have important roles. Oil immersed transformers are suitable for outdoor main substations, high capacity, continuous heavy loads, and rugged plant supply. Dry type transformers are suitable for indoor distribution rooms, load-center installation, clean factories, fire-sensitive areas, and facilities requiring lower oil-related maintenance.
Oil immersed transformers are suitable for manufacturing plants when installed outdoors, in a dedicated substation, or in a transformer room designed for oil-filled equipment. They are commonly used for main factory supply, heavy-duty production systems, large motor loads, steel, cement, chemical, machinery, water treatment, and large process manufacturing facilities.
Oil immersed transformers can provide strong thermal performance, high capacity options, ONAN or ONAF cooling, practical overload capability when properly specified, and useful accessories such as oil temperature indicators, winding temperature indicators, pressure relief devices, oil level indicators, Buchholz relays where applicable, and marshalling boxes.
However, oil immersed transformers require attention to oil containment, fire separation, leakage inspection, environmental protection, maintenance access, coating, ventilation, and local regulations. Their use inside production buildings or fire-sensitive areas should be reviewed carefully.
Dry type transformers, especially cast resin transformers, are suitable for manufacturing plants where indoor installation, fire safety, oil-free operation, low maintenance, and load-center distribution are important. They are commonly used in electronics factories, food plants, pharmaceutical plants, cleanroom facilities, packaging plants, indoor workshops, and building-integrated substations.
Dry type transformers can be equipped with IP enclosures, temperature controllers, PT100 sensors, cooling fans, alarm contacts, trip contacts, low-noise design, and monitoring interfaces. These features are useful where transformers are installed close to production areas or maintenance teams need clear temperature alarm signals.
Dry type transformers still require proper ventilation, cleaning access, temperature rise review, enclosure airflow, and harmonic consideration. In dusty, humid, high-temperature, or corrosive factory environments, enclosure protection and maintenance plans should be confirmed before final selection.
| Factor | Oil Immersed | Dry Type | Recommendation |
|---|---|---|---|
| Main Factory Power Supply | Suitable for outdoor main substations and high-capacity supply | Suitable for indoor main distribution within rated limits | Use oil immersed for outdoor high-capacity supply; dry type for indoor substations |
| Indoor Production Buildings | Requires fire safety and oil containment review | Suitable for indoor distribution and fire-sensitive areas | Dry type is usually preferred inside occupied or production buildings |
| Heavy Machinery Loads | Suitable for large motors, continuous duty, and heavy production loads | Suitable if capacity, ventilation, and thermal design are reviewed | Review motor starting, duty cycle, and short-circuit requirements |
| Clean Factories | Oil-filled equipment is usually less preferred indoors | Suitable for electronics, food, pharmaceutical, and cleanroom support areas | Dry type is often preferred for clean and fire-sensitive facilities |
| VFD / Rectifier / Welding Loads | Requires harmonic and thermal review | Also requires harmonic and thermal review | Provide harmonic data, load type, and operating cycle during RFQ |
| Harsh Environment | Outdoor coating, sealing, oil system, and accessories need review | Enclosure, ventilation, cleaning, and corrosion protection need review | Match configuration with dust, humidity, heat, and corrosive gases |
| Maintenance | Requires oil inspection, leakage checks, and accessory maintenance | Lower oil-related maintenance but needs cleaning and ventilation checks | Choose based on plant maintenance capability |
| Future Expansion | Suitable for large expansion and central substations | Suitable for modular indoor load-center expansion | Plan capacity margin and transformer layout without excessive oversizing |
Selection Summary
For manufacturing plants, oil immersed transformers are commonly selected for outdoor main substations, high-capacity power intake, heavy-duty loads, and large industrial processes. They are suitable where space, fire separation, oil containment, and maintenance access can be properly arranged.
Dry type transformers are commonly selected for indoor distribution rooms, production buildings, clean factories, electronics, food, pharmaceutical, and fire-sensitive manufacturing areas. The final selection should be based on load type, motor starting, harmonics, duty cycle, installation location, fire safety, ventilation, environment, future expansion, maintenance strategy, and project specifications.
Manufacturing plant customers are usually more concerned about production continuity than equipment price alone. A transformer problem may stop production lines, affect product quality, delay shipments, damage materials, and create downtime costs far beyond the initial transformer investment.
Transformer failure may stop production lines, interrupt delivery schedules, and create financial losses higher than the equipment cost.
We review load profile, capacity margin, duty cycle, cooling method, temperature rise, protection accessories, and monitoring options to support reliable operation.
Large motors, compressors, pumps, and machinery may cause voltage dips during starting, affecting nearby production equipment.
We review motor list, starting method, largest motor size, transformer impedance, voltage regulation, and protection coordination.
Power electronic loads may increase transformer heating, losses, noise, and insulation stress.
We recommend reviewing harmonic data, load cycle, transformer thermal design, K-factor or derating requirements if specified, and project power quality requirements.
Transformers may operate near full load for long production shifts, increasing thermal stress and insulation aging.
We consider continuous duty, load factor, ambient temperature, cooling method, temperature rise, losses, fan control, and thermal margin.
Factory environments may damage insulation, terminals, coatings, fans, and accessories over time.
We review enclosure protection, ventilation, cleaning access, coating, sealing, temperature monitoring, and material suitability according to site conditions.
New production lines may overload the transformer, but oversizing too much can increase cost and losses.
We help review existing load, planned expansion, diversity factor, spare capacity, transformer quantity, and possible modular distribution arrangement.
Maintenance teams need clear alarms, spare parts, protection devices, and documents to respond quickly when problems occur.
We provide temperature monitoring, alarm and trip contacts, accessory lists, wiring diagrams, O&M manuals, spare parts recommendations, and test reports.
Transformer selection for manufacturing plants often goes wrong when the buyer selects only by voltage and capacity without reviewing production loads, harmonics, motor starting, environment, cooling, maintenance, and future expansion. Factory power systems need a practical solution based on real operating conditions.
kVA rating does not confirm suitability for motor starting, harmonics, continuous load, temperature rise, impedance, losses, or short-circuit withstand.
Review load list, motor list, duty cycle, VFD and rectifier loads, ambient condition, and project specification together.
Harmonics may increase transformer heating, losses, sound level, and insulation stress.
Provide harmonic data, VFD quantity, rectifier type, welding load details, and project power quality requirements during RFQ.
Large motors may create voltage dips or nuisance trips if transformer impedance and capacity are not coordinated.
Confirm largest motor size, starting method, starting frequency, operating sequence, and acceptable voltage drop.
Dry type transformers release heat into the room. Poor ventilation can cause overheating, fan overuse, or alarm trips.
Coordinate transformer losses, enclosure airflow, room ventilation, clearance, cooling fans, and ambient temperature with the MEP team.
Dust, humidity, heat, oil mist, chemical vapor, or corrosive gas can shorten transformer and accessory life.
Specify site environment, enclosure protection, coating requirements, ventilation, cleaning access, and maintenance interval.
Excessive oversizing may increase initial cost and no-load losses, especially if the transformer operates lightly loaded for long periods.
Balance current load, future expansion, load diversity, transformer quantity, and lifecycle loss evaluation.
Missing GA drawings, foundation drawings, routine test reports, impedance data, loss data, and manuals may delay consultant approval or factory installation.
Confirm document list, drawing approval workflow, FAT requirements, and final handover package during quotation.
Manufacturing plant transformer projects involve plant owners, production teams, EPC contractors, consultants, maintenance teams, and procurement teams. Each stakeholder cares about different risks, from production uptime and technical compliance to installation layout, maintenance, and spare parts.
Production continuity, downtime cost, energy losses, safety, expansion flexibility, and long-term operating reliability.
A transformer solution matched to real production loads, duty cycle, site environment, and future expansion plan.
Stable voltage, motor starting, machine operation, process continuity, sensitive equipment, and production line reliability.
Load-based transformer selection, motor starting review, harmonic consideration, and separation of sensitive loads where needed.
Installation space, cable entry, foundation, lifting route, switchgear interface, ventilation, delivery schedule, and site coordination.
Accurate GA drawings, foundation drawings, terminal arrangement, weight, dimensions, cable entry details, and installation guidance.
Capacity, voltage ratio, vector group, impedance, losses, temperature rise, short-circuit withstand, harmonic impact, standards, and protection coordination.
Complete datasheets, technical drawings, routine test reports, type test references, compliance statements, and deviation notes if applicable.
Temperature monitoring, alarms, fan operation, oil checks if applicable, cleaning, spare parts, troubleshooting, and safe maintenance.
Monitoring details, wiring diagrams, accessory lists, O&M manuals, spare parts recommendations, inspection checklist, and practical access guidance.
Technical compliance, clear scope, document completeness, inspection requirements, delivery risk, packing, and commercial comparison.
A clear quotation, defined supply scope, document list, FAT plan, packing information, and agreed technical responsibilities.
The following configurations are general references for manufacturing plant transformer applications. Final selection should be confirmed according to project specification, single-line diagram, load list, motor list, harmonic data, installation environment, local standards, consultant requirements, and future expansion plan.
Outdoor main substation for manufacturing plant
Indoor electrical room or load-center distribution inside production building
Heavy motor loads, compressors, pumps, conveyors, or production machinery
VFD, rectifier, welding, or power electronic load area
Electronics, food, pharmaceutical, cleanroom, or hygienic manufacturing facility
Configuration Notes
The above configurations are preliminary references only. Final transformer type, capacity, voltage ratio, vector group, impedance, insulation level, short-circuit withstand, cooling method, enclosure or tank protection, temperature rise, loss level, harmonic suitability, monitoring accessories, test scope, and document package should be confirmed according to project specification, single-line diagram, load list, motor starting data, harmonic information, installation environment, and consultant approval.
For manufacturing plant projects, transformer documents are essential for engineering review, consultant approval, production line coordination, factory acceptance testing, installation, commissioning, maintenance planning, and future troubleshooting. Complete documents reduce technical uncertainty and help plant teams operate the transformer safely after handover.
Includes rated capacity, voltage ratio, frequency, vector group, impedance, insulation level, cooling method, temperature rise, losses, sound level, accessories, and applicable standards.
Shows transformer dimensions, weight, lifting points, tank or enclosure details, terminal arrangement, cable entry direction, accessories, and installation clearance.
Provides base dimensions, fixing points, floor loading, oil containment reference if applicable, ventilation clearance, and installation footprint.
Shows MV and LV terminal positions, cable entry direction, cable box arrangement, busbar interface if required, and maintenance clearance.
Confirms rated parameters, voltage ratio, vector group, impedance, cooling method, standard reference, weight, and transformer identification.
Helps confirm transformer position in the plant power system and coordination with switchgear, MCC, VFD panels, rectifiers, motors, and downstream loads.
Records factory test results such as winding resistance, voltage ratio, vector group, impedance, load loss, no-load loss, insulation resistance, applied voltage test, and induced voltage test.
Provides supporting evidence for temperature rise, lightning impulse, short-circuit withstand, partial discharge for dry type transformers, or sound level where required.
Provides no-load loss, load loss, auxiliary loss if applicable, and efficiency information for operating cost and heat dissipation review.
Supports thermal performance review, especially for continuous heavy-duty manufacturing loads.
Shows wiring for temperature sensors, oil or winding temperature indicators, fan control, alarm contacts, trip contacts, marshalling box, and terminal blocks.
Lists temperature controllers, PT100 sensors, cooling fans, oil indicators, winding temperature devices, pressure relief devices, relays, alarm contacts, and enclosure details.
Provides review comments where VFD, rectifier, welding, or other nonlinear loads require special consideration.
Provides guidance for transportation, storage, lifting, installation, ventilation, energization, inspection, cleaning, oil checks if applicable, troubleshooting, and maintenance.
Includes FAT test items, witness points, acceptance criteria, final datasheets, approved drawings, test reports, manuals, packing list, and inspection records.
Routine tests should be performed according to the agreed standard and project specification. Typical tests include winding resistance, voltage ratio, vector group, impedance, load loss, no-load loss, insulation resistance, applied voltage test, and induced voltage test.
The transformer should be checked against approved drawings, including dimensions, tank or enclosure, terminal arrangement, cable entry, accessories, paint finish, lifting points, nameplate, and installation interface.
Temperature sensors, controllers, fan control, oil or winding temperature indicators, alarm contacts, trip contacts, terminal blocks, and monitoring wiring should be checked according to approved diagrams.
Depending on project specifications, temperature rise test, partial discharge test for dry type transformers, sound level test, lightning impulse test, or short-circuit withstand reference may be required.
Before shipment, packing condition, accessory boxes, spare parts, manuals, document package, shipping marks, moisture protection, and handling instructions should be verified.
Approval Notes
For an accurate manufacturing plant transformer proposal, customers are encouraged to provide the project specification, single-line diagram, voltage ratio, rated capacity, frequency, vector group, impedance requirement, load list, motor list, largest motor size, starting method, VFD or rectifier data, welding load information, duty cycle, harmonic data if available, short-circuit level, installation location, ambient temperature, dust, humidity, corrosion condition, enclosure requirement, future expansion plan, applicable standards, FAT scope, and document list.
The following transformer products are commonly recommended for manufacturing plant power distribution. Final product configuration should be confirmed against project specifications, production load profile, and consultant approval.
Suitable for outdoor main substations, heavy production loads, high-capacity factory supply, and continuous industrial operation.
Suitable for indoor electrical rooms, load-center distribution, production buildings, clean facilities, and fire-sensitive factory areas.
Suitable for factories with compressors, pumps, conveyors, fans, machinery, and motor-driven production equipment.
Suitable for manufacturing systems with nonlinear loads requiring harmonic, thermal, and duty-cycle review.
Suitable for electronics, food, pharmaceutical, cleanroom, packaging, and indoor production facilities requiring oil-free low-maintenance power distribution.
Background reading to help factory owners, EPC contractors, electrical consultants, and procurement teams prepare a clearer transformer specification for manufacturing plant projects.
Transformer Selection for Manufacturing Plants
Learn how load profile, production line requirements, installation location, environment, and expansion plan affect transformer selection.
Transformer Selection for Motor Starting Loads
Understand how large motors, starting current, impedance, voltage dip, and protection coordination affect factory transformers.
Harmonics from VFDs and Rectifiers in Transformer Design
Learn why power electronic loads can increase transformer heating, losses, noise, and derating requirements.
Oil Immersed vs Dry Type Transformer for Factories
Compare transformer type selection based on indoor or outdoor installation, fire safety, capacity, maintenance, and environment.
Transformer Documents Required for Factory Projects
A checklist of datasheets, drawings, test reports, impedance, losses, temperature rise data, wiring diagrams, and O&M manuals.
The following FAQs answer common questions from factory owners, EPC contractors, electrical consultants, and procurement teams when selecting transformers for manufacturing plants.
Manufacturing plants may use both oil immersed and dry type transformers. Oil immersed transformers are commonly used for outdoor main substations, large-capacity power supply, heavy-duty production loads, and continuous industrial operation. Dry type transformers are often used for indoor electrical rooms, load-center distribution, clean facilities, food plants, pharmaceutical plants, electronics factories, and fire-sensitive areas. The final choice depends on installation location, load profile, fire safety, environment, maintenance capability, and project specifications.
A factory should consider an oil immersed transformer for outdoor main substations, high-capacity incoming supply, heavy production loads, large motors, and continuous-duty applications. Oil immersed transformers provide practical cooling and can be configured with protection accessories such as oil temperature indicators, winding temperature indicators, pressure relief devices, and relays where applicable. However, oil containment, fire separation, leakage inspection, environmental protection, and maintenance access should be reviewed. Indoor use should follow local regulations and project fire safety requirements.
A manufacturing plant should consider a dry type transformer when the transformer is installed indoors, near load centers, inside production buildings, or in fire-sensitive areas. Dry type transformers are often suitable for electronics, food, pharmaceutical, packaging, cleanroom, and general manufacturing facilities. They do not use insulating oil, so they reduce oil leakage and oil-related fire concerns. However, dry type transformers require proper ventilation, cleaning access, temperature monitoring, and enclosure review, especially in dusty, humid, or high-temperature factory environments.
Motor loads can affect transformer selection because large motors may create high starting current and voltage dips during startup. This can disturb other production equipment or cause nuisance trips if the transformer is not properly sized and coordinated. Transformer capacity, impedance, voltage regulation, short-circuit withstand, thermal margin, and protection settings should be reviewed. Customers should provide the motor list, largest motor size, starting method, starting frequency, operating sequence, and acceptable voltage drop during quotation.
VFDs, rectifiers, welding machines, and other nonlinear loads may introduce harmonics and irregular load patterns. These can increase transformer heating, losses, sound level, and insulation stress. The transformer may require harmonic review, thermal margin, special winding consideration, shielding if specified, or derating depending on the project. Customers should provide VFD quantity, rectifier data, welding load cycle, harmonic information if available, and power quality requirements so the transformer can be reviewed properly.
Transformer capacity planning should consider current load, planned machines, future production lines, demand factor, duty cycle, load diversity, and operating schedule. Adding reasonable spare capacity can support expansion, but excessive oversizing may increase initial cost and no-load losses. In some factories, it may be better to use multiple transformers or reserve space for an additional unit rather than oversizing one transformer. The final decision should be reviewed with the electrical consultant based on the plant expansion plan.
Common documents include the technical datasheet, general arrangement drawing, foundation drawing, cable entry drawing, nameplate drawing, routine test report, loss data sheet, temperature rise test report or reference, wiring diagram, accessory list, installation manual, maintenance manual, compliance statement, and FAT procedure. For special loads, harmonic review notes or equipment interface information may also be required. These documents help consultants, EPC teams, and maintenance teams review technical compliance and installation requirements.
To prepare an accurate quotation, provide the project specification, single-line diagram, voltage ratio, rated capacity, frequency, vector group, impedance requirement, load list, motor list, largest motor size, starting method, VFD or rectifier data, welding load information, duty cycle, harmonic data if available, short-circuit level, installation location, ambient temperature, dust, humidity, corrosion condition, enclosure requirement, future expansion plan, applicable standards, FAT scope, and document list.
