TRANSFORMER APPLICATION

Transformers for Coastal Areas

A coastal transformer enquiry should describe the exposure at the equipment, not only the distance from the sea. Salt, humidity, industrial contamination, rain and storage conditions can affect different parts of the assembly. Define corrosion protection, external-insulation requirements, enclosure interfaces and maintenance access separately, then check the proposed configuration and supporting evidence against the project's actual conditions.

Discuss Your Project

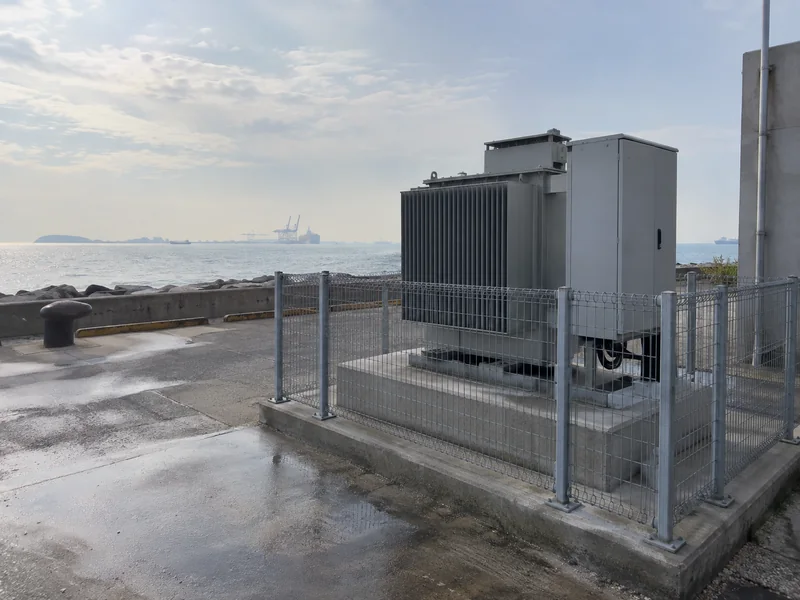

Fenced transformer equipment on a raised concrete pad in a coastal service yard

Conditions that affect configuration

Atmospheric corrosion and the complete assembly

Salt exposure, humidity and local pollutants influence the corrosion specification. A coating chosen for the tank does not automatically cover radiators, hinges, fasteners, terminal boxes or accessories. Different materials and finishes need to be identified rather than hidden behind a general marine-grade description.

Information to provide: The owner's exposure assessment and required protection specification, including any special industrial atmosphere. Define the assembly parts, materials, surface preparation, coating system, specified film thickness and inspection criteria. Ask how edges, joints and transport damage are addressed. Confirm requirements before accepting an offered finish as suitable.

External insulation and deposited contamination

Pollution on exposed insulating surfaces is a separate issue from corrosion of metal parts. The relevant insulation arrangement depends on the electrical system, equipment and site exposure. Tank paint or a stainless enclosure cannot establish that exposed bushings or other insulation meet the project requirement.

Information to provide: System and winding voltages, highest equipment voltage, insulation requirements, installation layout and the available site-pollution assessment. Identify exposed bushings and terminal interfaces, relevant utility requirements and the requested insulation-selection evidence. Required dimensions or creepage must be confirmed for the actual design, not selected from a generic coastal label.

Ingress, condensation and cooling

Protection against specified dust or water ingress does not by itself establish corrosion resistance or prevent internal condensation. Cable entries, glands, gaskets and compartment interfaces must match the intended arrangement. Restricting air movement to exclude contamination may also affect the thermal design.

Information to provide: Required enclosure protection and its test basis, terminal-box and gland details, humidity and temperature conditions, air paths and cooling requirements. Include shutdown or storage periods and any specified moisture-control auxiliary. Coordinate these measures with the enclosure and room designers; do not assume that sealing or adding heat is always the appropriate solution.

Storage, inspection and service access

Environmental protection needs to remain effective before installation and during service. Salt deposits, damaged finishes and deteriorating seals require attention under the applicable maintenance instructions. A configuration that cannot be inspected or maintained at the site may leave important interfaces inaccessible.

Information to provide: Transport and storage conditions, anticipated delay before commissioning, preservation instructions, receiving inspection scope and access for periodic checks. Agree the required maintenance information, coating repair guidance where applicable and spare-part needs. Inspection and cleaning methods must be established by qualified personnel for the equipment and site.

Define the environmental duty

Specify equipment for an exposed coastal site

A port, coastal plant or land-based substation may face salt-laden air together with rain and local industrial pollution. The tank finish is only one part of the requirement: radiators, hardware, terminal compartments and exposed insulation also need an appropriate review.

Send these inputs
Site location and layout, salt or spray exposure, humidity and rainfall, local pollution, temperature and altitude, any corrosion or insulation-pollution assessment, electrical duty, installation arrangement, owner specifications and maintenance constraints.
Review and coordination
Separate atmospheric corrosion, insulation contamination and enclosure ingress requirements. Identify the materials, finishes, seals and interfaces included in the offer, and the evidence required for each. A coastal location does not automatically establish a particular coating class, enclosure code or approved configuration.
Expected output
An environmental equipment brief with assembly-wide protection requirements, applicable evidence and unresolved exposure or interface questions for quotation.
Discuss This Task

Coordinate equipment in a humid indoor room

Moving equipment indoors does not automatically remove salt or moisture exposure. Air intake, temperature changes, intermittent air conditioning and periods without energization can change the conditions inside a room or enclosure. Moisture control must remain compatible with the equipment's cooling needs.

Send these inputs
Room and enclosure drawings, ventilation and air-intake arrangement, humidity and temperature information, cooling and shutdown periods, possible water-entry paths, proposed environmental protection, monitoring requirements and available maintenance access.
Review and coordination
Coordinate the equipment enclosure and terminal compartments with the room's ventilation and moisture-control design. Identify whether any compartment-specific heater, humidity control or monitoring is required and who provides its auxiliary supply. Do not assume that one heater or an IP label protects the complete installation.
Expected output
A list of room, cooling and enclosure interfaces to resolve with the responsible designers before confirming the equipment arrangement.
Discuss This Task

Plan replacement, delivery and preservation

Coastal projects may need to replace corroded equipment or store new units before installation is ready. Both situations require more information than a paint description. Existing condition, retained interfaces and the period between delivery and commissioning affect the enquiry and handover requirements.

Send these inputs
Existing nameplate, drawings and condition records for replacement; required duty, terminal and foundation details, delivery phases, storage location and duration, packing needs, access constraints and the owner's inspection or preservation requirements.
Review and coordination
Clarify what must be retained, replaced or reassessed by qualified personnel. Define the required protection during transport, storage and de-energized periods, using instructions applicable to the offered equipment. Distinguish equipment supply from corrosion repairs, site work and decisions about continued operation.
Expected output
A replacement or delivery brief with interface requirements, preservation responsibilities and the records needed for receiving inspection and handover.
Discuss This Task

Explore suitable product options

Oil-immersed transformers

Explore liquid-filled equipment with the tank, radiators, hardware, terminal boxes, seals and external insulation reviewed for the site. Confirm the fluid, cooling and installation requirements alongside corrosion protection. Oil-filled construction does not independently establish a coastal rating or remove maintenance needs.

Review product range

Dry-type transformers

Explore oil-free equipment where the proposed indoor or enclosed arrangement is appropriate. Confirm the environmental and insulation requirements, air quality, moisture control, cooling and access for the actual configuration. Indoor placement and resin construction do not replace a site-specific humidity and contamination review.

Review product range

Documents by project stage

Exposure and quotation requirements

Provide the environmental description, electrical duty, owner specification and installation layout. Separate corrosion, ingress, insulation-pollution and moisture-control requirements. Identify required material or coating schedules, evidence and exceptions. Confirm which items are included in the offer and which site conditions or acceptance criteria still need clarification.

Stage: quotation

Protection scope and interface approval

Link the agreed materials, finish, coating preparation and inspection requirements to the offered configuration. Review terminal compartments, glands, seals, cooling and access against the coordinated drawings. Identify the applicability of any coating or environmental test report: evidence for one specimen or component is not automatically evidence for the complete assembly.

Stage: design approval

Inspection, preservation and handover records

Agree applicable finish and dimensional inspections, electrical records, accessory checks, packing and receiving requirements. Where environmental testing is specified, confirm the method, specimen, conditions and acceptance criteria in advance. Provide the agreed installation, storage and maintenance information, linked to the supplied equipment. Laboratory exposure results do not by themselves guarantee a number of coastal service years.

Stage: delivery

Scope and coordination

The offer covers only the equipment, protection measures, documents and services expressly included. Site exposure assessment, room humidity control, foundations, drainage, installation and operating maintenance are not automatically included in transformer supply. Land-based coastal suitability does not imply shipboard, offshore or submersion approval. Existing damage and continued-operation decisions require qualified site assessment, not a conclusion from a photograph or general product description.

Questions before requesting a quotation

Does an IP rating prove salt-corrosion resistance?

No. An IP code addresses specified ingress protection, not a complete coastal-corrosion specification. Ask separately about materials, finishes, hardware, seals, exposed insulation and applicable environmental evidence. Also check the installed interfaces and condensation conditions rather than relying only on the enclosure's label.

Can salt-spray test hours be converted into years of service?

Not as a stand-alone guarantee. The test method, specimen, finish, exposure conditions and evaluation criteria matter, and field exposure differs from a laboratory chamber. Request evidence applicable to the proposed protection system without treating a test duration as a promised coastal service life.

Is an indoor coastal installation free from moisture concerns?

No. Humid air, local temperature changes and de-energized periods still need consideration. Review air intake, room conditions, enclosure and terminal interfaces, cooling and preservation requirements. Any moisture-control measure should be specified for its actual compartment and operating conditions, with the necessary auxiliary supply and instructions.

What if we do not have a formal corrosion classification yet?

Send the site location, installation arrangement, known salt or spray exposure, humidity, nearby industry, storage plans and available owner requirements. Mark the missing assessment as open. The enquiry can identify the evidence still needed without assigning a corrosion class or promising a universal coastal protection package.
