Transformer solutions for solar farms, PV power plants, inverter stations, and grid-connected renewable energy projects.
We help EPC contractors, developers, and electrical consultants select suitable oil immersed step-up transformers for outdoor operation, inverter matching, low losses, and grid connection requirements.
Solar power plants usually use oil immersed step-up transformers to raise inverter output voltage to the medium-voltage collection level, such as 10kV, 11kV, 22kV, or 33kV. These transformers are commonly installed outdoors near inverter stations or solar substations. Selection should consider inverter matching, capacity, voltage ratio, vector group, impedance, harmonic impact, temperature rise, low losses, corrosion protection, ambient conditions, grid connection requirements, and project specifications.
Solar power plants need transformers because PV inverters usually output low-voltage AC power, while the collection system and grid connection require medium-voltage or higher-voltage transmission. Step-up transformers convert inverter output voltage to the required collection voltage so that generated power can be delivered efficiently to the solar substation and then to the grid.
Unlike ordinary building transformers, solar transformers operate in outdoor environments and are exposed to high ambient temperature, solar radiation, dust, humidity, wind, and sometimes corrosive conditions. They also need to work with inverter output characteristics, fluctuating solar generation, possible harmonic content, and grid connection requirements.
For solar developers and EPC contractors, transformer losses directly affect long-term energy yield and project financial performance. A lower initial purchase cost may not be economical if transformer losses are high, documentation is incomplete, or the transformer does not match grid and inverter requirements.
Solar inverters usually output low-voltage AC power, while the solar collection system commonly operates at medium voltage. Step-up transformers raise the voltage to the required level for efficient power collection and grid connection.
The transformer must match inverter output voltage, inverter capacity, number of inverter inputs, vector group, impedance, grounding arrangement, and protection requirements. Poor matching may cause design changes, losses, overheating, or commissioning issues.
Solar power plant transformers are often installed outdoors and operate for long periods under variable load and harsh environmental conditions. Cooling method, temperature rise, oil system, coating, sealing, and accessories should be selected accordingly.
Solar projects operate for many years, and transformer losses reduce the net power delivered to the grid. Reviewing no-load loss, load loss, efficiency, and cooling method helps support better lifecycle economics.
Utility companies and grid operators may require specific voltage levels, impedance, protection interfaces, test reports, nameplate data, and technical documents. Complete transformer documentation supports project approval and grid connection.
A typical solar power plant power system starts with PV modules producing DC power, followed by combiner boxes or DC collection, inverters converting DC to AC, step-up transformers raising inverter output voltage, medium-voltage collection lines, a solar substation, and grid interconnection equipment.

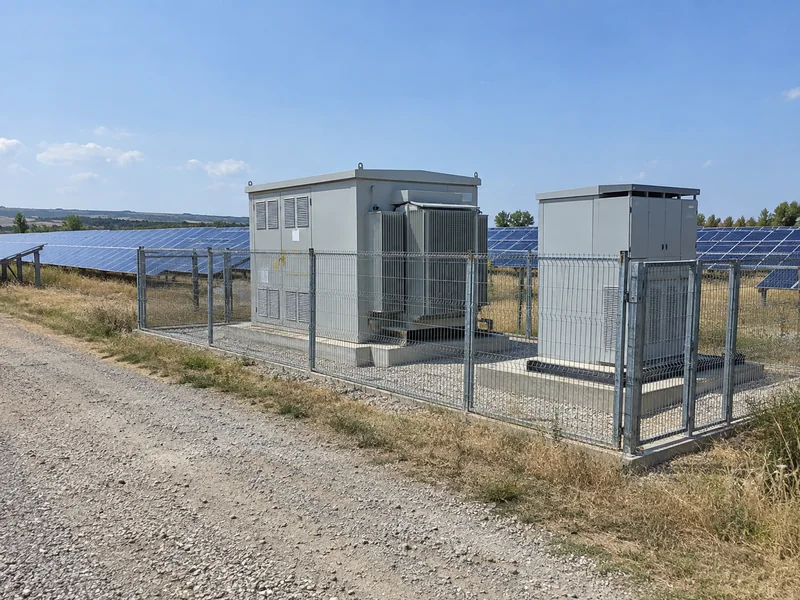

Transformers are usually located at inverter stations, box-type substations, pad-mounted transformer stations, or main substations. In smaller projects, one transformer may serve one or several inverters. In utility-scale projects, multiple step-up transformers collect power from different PV blocks before feeding the main substation.
Solar panels generate DC power based on sunlight, module capacity, and site conditions.
DC power from PV strings is collected and routed to inverters through combiner boxes or string inverter arrangements.
Inverters convert DC power into AC power at a low-voltage level, such as 400 V, 480 V, 690 V, 800 V, or project-specific output voltage.
The transformer raises inverter output voltage to the medium-voltage collection level, commonly 10kV, 11kV, 22kV, 33kV, or another grid-required voltage.
MV cables or overhead lines collect power from multiple inverter transformer stations and deliver it to the solar plant substation.
The substation may further step up voltage, provide protection, metering, control, and grid interconnection functions.
Generated power is delivered to the utility grid after meeting grid code, protection, metering, and commissioning requirements.
Engineering Notes
In solar power plants, transformers are mainly used as step-up transformers between inverters and the medium-voltage collection system. They must be coordinated with inverter output voltage, grid voltage, protection devices, grounding method, harmonic conditions, short-circuit level, and utility requirements.
Oil immersed transformers are commonly used for outdoor solar inverter stations because they offer practical thermal performance, high capacity options, and suitability for outdoor installation. Dry type transformers may be used for auxiliary power distribution, indoor control buildings, O&M buildings, or special fire-sensitive areas.
Selecting a transformer for a solar power plant should begin with the electrical architecture of the PV block. The transformer must match inverter output voltage, total inverter capacity, grid collection voltage, vector group, impedance, cooling method, grounding method, protection design, and site conditions.
Oil immersed step-up transformers are usually the main choice for solar farms because most PV transformer stations are installed outdoors and must handle high ambient temperature, variable generation, and long-term operation. Dry type transformers are typically used for auxiliary services, indoor buildings, or locations where oil-free installation is required.
Oil immersed transformers are highly suitable for solar power plants, especially for outdoor step-up applications near inverter stations or in solar substations. They are commonly used to raise inverter output voltage to medium-voltage collection levels such as 10kV, 11kV, 22kV, or 33kV.
For utility-scale solar farms, oil immersed transformers can support larger capacities, outdoor installation, efficient cooling, continuous operation, and practical maintenance. They can also be configured with protection and monitoring accessories such as oil temperature indicators, winding temperature indicators, pressure relief devices, oil level indicators, Buchholz relays where applicable, and marshalling boxes.
However, solar power plant sites may be exposed to high temperature, dust, humidity, salt spray, sand, or corrosive atmosphere. Transformer tank design, sealing, coating system, cooling method, enclosure protection, oil containment, and maintenance access should be reviewed according to the site environment.
Dry type transformers are less commonly used as the main outdoor step-up transformer for large solar farms, but they can be suitable for auxiliary power distribution, indoor control buildings, inverter rooms, battery energy storage auxiliary loads, O&M buildings, and fire-sensitive electrical rooms.
Dry type transformers may also be considered where oil-free installation is specifically required by the project or local regulation. They can be supplied with temperature controllers, PT100 sensors, cooling fans, enclosures, alarm contacts, and trip contacts.
For solar projects, dry type transformer selection should consider ventilation, dust, ambient temperature, enclosure protection, and whether the installation is indoor or sheltered. If used outdoors, the enclosure and environmental protection requirements must be carefully confirmed.
| Factor | Oil Immersed | Dry Type | Recommendation |
|---|---|---|---|
| Main Solar Step-Up Application | Commonly used for outdoor inverter stations and PV substations | Less common for outdoor main step-up applications | Use oil immersed transformers for most outdoor solar step-up duties |
| 33kV Collection System | Suitable for 33kV solar project step-up applications | Possible in special indoor or sheltered applications | Oil immersed type is usually preferred for 33kV outdoor solar farms |
| Outdoor High Temperature | Good thermal performance when properly designed | Requires careful enclosure and ventilation design | Confirm ambient temperature, solar radiation, and cooling method |
| Fire and Oil Consideration | Requires oil containment and environmental protection | No insulating oil, suitable for oil-free indoor areas | Use dry type for auxiliary indoor fire-sensitive areas |
| Losses and Yield | Low-loss oil immersed design is available and important for project economics | Low-loss dry type design is possible but less common for main PV step-up | Compare no-load loss and load loss for lifecycle evaluation |
| Inverter Matching | Suitable for multiple inverter station configurations | Suitable for specific auxiliary or indoor inverter-related loads | Confirm inverter output voltage, capacity, vector group, and impedance |
| Corrosion Resistance | Tank coating, sealing, and accessories must match site environment | Enclosure and resin insulation must match indoor or sheltered conditions | Provide site data such as humidity, salt spray, dust, and altitude |
| Maintenance | Requires oil inspection and outdoor condition checks | Lower oil-related maintenance but requires ventilation and cleaning | Choose based on installation location and O&M strategy |
Selection Summary
For most solar power plants, oil immersed step-up transformers are the practical and commonly selected solution for outdoor inverter stations, 33kV collection systems, and utility-scale PV power blocks. They provide suitable capacity, thermal performance, outdoor installation capability, and long-term operation when properly designed.
Dry type transformers can be used for auxiliary power, indoor control buildings, O&M facilities, or fire-sensitive areas where oil-free installation is preferred. Final selection should be confirmed according to inverter data, voltage ratio, grid connection voltage, capacity, impedance, vector group, harmonic conditions, ambient temperature, corrosion level, losses, standards, and project specifications.
Solar project buyers usually care about more than transformer purchase cost. They are concerned about grid connection approval, inverter compatibility, transformer losses, outdoor reliability, high ambient temperature, corrosion, harmonic impact, delivery schedule, test documents, and whether the transformer can support long-term project yield.
The transformer may not match inverter voltage, capacity, vector group, grounding method, or impedance requirements, causing design changes or commissioning problems.
We review inverter datasheets, single-line diagrams, AC output voltage, total inverter capacity, grounding requirements, and grid voltage before recommending transformer parameters.
Missing technical documents, incorrect parameters, or incomplete test reports may delay utility approval and project commissioning.
We provide datasheets, drawings, routine test reports, nameplate data, accessory lists, and compliance documents required for EPC and grid review.
Higher no-load and load losses reduce the net electricity delivered to the grid over the life of the solar project.
We provide loss data and low-loss transformer options so the customer can compare lifecycle energy loss, not only initial transformer price.
Solar farms may be located in hot, dry, dusty, or high-radiation environments, increasing transformer thermal stress.
We review ambient temperature, cooling method, temperature rise, tank design, radiator arrangement, oil temperature monitoring, and derating requirements.
Coastal, desert, humid, or chemically exposed sites may cause corrosion of tank, radiators, terminals, and accessories.
We consider coating system, sealing, material selection, enclosure protection, terminal box design, and site-specific environmental conditions.
Inverter output may introduce harmonic components that affect transformer heating, losses, noise, or power quality.
We recommend reviewing inverter harmonic data, transformer thermal design, impedance, winding design, and project power quality requirements.
Transformers are distributed across wide solar farms, making inspection and maintenance time-consuming.
We provide practical accessory options, clear maintenance documents, monitoring interfaces where required, and design details that support easier O&M planning.
Solar transformer selection can go wrong when the transformer is treated as a standard distribution unit without considering inverter characteristics, outdoor climate, collection voltage, grid requirements, energy losses, and long-term operation in remote environments.
If transformer capacity, voltage ratio, or impedance does not match the inverter block design, the project may face overheating, voltage issues, or design revision.
Confirm inverter output voltage, inverter quantity, total AC capacity, overload conditions, and transformer sizing basis before selection.
Many solar projects use 33kV collection systems. Incorrect insulation level, voltage ratio, protection interface, or nameplate data may delay approval.
Clearly specify collection voltage, insulation level, tapping range, vector group, grounding method, and applicable utility requirements.
Solar transformers operate for many years, and transformer losses reduce project revenue by lowering delivered energy.
Compare no-load loss, load loss, efficiency, cooling method, and expected operating profile during procurement.
Solar farms are often located in hot regions where transformer temperature rise and cooling performance are critical.
Provide ambient temperature, altitude, solar radiation condition if available, and installation layout so thermal design can be reviewed.
Coastal, desert, humid, or industrial environments may accelerate corrosion on transformer tanks, radiators, terminals, and accessories.
Specify site environment, corrosion category if available, coating requirements, terminal box protection, and maintenance expectations.
Harmonics may increase transformer heating, losses, noise, and power quality issues if not considered.
Provide inverter harmonic data or project power quality requirements so transformer design and thermal margin can be reviewed.
Utility approval often requires technical parameters, test reports, drawings, and compliance statements. Missing documents may delay energization.
Confirm document list, grid code requirements, routine test scope, FAT requirements, and nameplate data during the quotation stage.
Solar power plant transformer selection involves different stakeholders with different priorities. The developer focuses on project yield and approval, the EPC contractor focuses on system integration and delivery, the consultant focuses on compliance, and the O&M team focuses on outdoor reliability and maintainability.
Project yield, grid connection schedule, long-term reliability, transformer losses, O&M cost, and lifecycle performance.
A transformer solution that matches the solar plant design, reduces unnecessary losses, and supports approval and long-term operation.
Inverter matching, delivery schedule, installation interface, foundation, cable connection, MV collection system, and FAT documentation.
Accurate datasheets, drawings, terminal arrangement, weight, dimensions, testing scope, accessory details, and clear delivery documentation.
Voltage ratio, capacity, vector group, impedance, insulation level, losses, temperature rise, harmonic impact, short-circuit withstand, and grid code compliance.
Complete technical documents, test reports, standard references, compliance statements, and clearly stated deviations if any.
Outdoor reliability, oil temperature, leakage inspection, corrosion, spare parts, cleaning, monitoring signals, and access across a large site.
Maintenance manual, accessory list, monitoring options, spare parts information, inspection guidance, and clear transformer identification.
Technical compliance, commercial scope, inspection requirements, packing, shipment readiness, warranty terms, and document completeness.
A clear technical proposal, confirmed supply scope, test plan, document list, packing details, and agreed responsibilities before ordering.
The following configurations are general references for solar power plant transformer applications. Final selection should be confirmed according to inverter datasheets, single-line diagram, grid connection voltage, site environment, utility requirements, project specification, loss evaluation, and applicable standards.
Utility-scale solar farm inverter station
33kV solar collection system
Hot, desert, dusty, or high-radiation solar site
Coastal, humid, or corrosive solar project site
Auxiliary power for control building, O&M building, or station service loads
Configuration Notes
The above configurations are preliminary references only. Final transformer type, capacity, voltage ratio, vector group, impedance, insulation level, tapping range, cooling method, loss level, temperature rise, harmonic consideration, enclosure or tank protection, corrosion protection, accessories, and test scope should be confirmed according to the inverter data, project specification, single-line diagram, grid connection requirements, site environment, and applicable standards.
For solar power plant projects, transformer documentation is essential for EPC design review, utility approval, grid connection, factory acceptance testing, installation, commissioning, and final handover. Complete and accurate documents help reduce approval delays and support smoother project execution.
Includes rated capacity, voltage ratio, frequency, vector group, impedance, insulation level, tapping range, cooling method, temperature rise, losses, sound level, accessories, and applicable standards.
Shows transformer dimensions, weight, lifting points, tank design, radiator arrangement, terminal position, cable box, accessories, foundation interface, and installation clearance.
Provides base dimensions, fixing points, oil containment reference if applicable, ground clearance, cable trench interface, and installation footprint.
Confirms rated parameters, voltage ratio, vector group, impedance, cooling method, oil weight, total weight, standard reference, and identification data.
Helps confirm the transformer's position between inverter output and MV collection system, including switchgear, protection, grounding, and grid connection arrangement.
Records factory test results such as winding resistance, voltage ratio, vector group, impedance, load loss, no-load loss, insulation resistance, applied voltage test, and induced voltage test.
Provides supporting evidence for temperature rise, lightning impulse, short-circuit withstand, sound level, or other type tests when required by project specifications.
Provides no-load loss, load loss, auxiliary loss if applicable, and efficiency information for energy yield and lifecycle cost evaluation.
Confirms transformer thermal performance when required by the EPC contractor, owner, consultant, or utility.
Shows wiring for temperature indicators, alarm contacts, trip contacts, marshalling box, cooling fans if any, space heaters, and monitoring terminals.
Lists oil temperature indicator, winding temperature indicator, oil level indicator, pressure relief device, Buchholz relay if applicable, marshalling box, and other accessories.
Describes paint system, coating thickness, corrosion protection measures, and surface treatment when required for harsh solar project environments.
Provides guidance for transportation, storage, lifting, installation, oil inspection, energization, maintenance, safety precautions, and routine checks.
Defines FAT test items, witness points, acceptance criteria, inspection responsibilities, and reporting format before shipment.
Identifies transformer body, radiators if detached, accessories, spare parts, tools, document package, packing method, and shipping marks.
Routine tests should be performed according to the agreed standard and project specification. Typical tests include winding resistance, voltage ratio, vector group, impedance, load loss, no-load loss, insulation resistance, applied voltage test, and induced voltage test.
No-load loss and load loss should be measured and recorded because transformer losses affect solar project energy yield and long-term operating economics.
The transformer should be checked against approved drawings, including tank, radiators, cable box, terminals, accessories, paint finish, nameplate, lifting points, and installation interface.
Oil temperature indicator, winding temperature indicator, oil level indicator, pressure relief device, relay contacts, marshalling box wiring, and other accessories should be checked according to the approved accessory list.
Before shipment, packing condition, oil sealing, accessory boxes, moisture protection, document package, shipping marks, and handling instructions should be verified to reduce site receiving issues.
Approval Notes
For an accurate solar transformer proposal, customers are encouraged to provide the project specification, single-line diagram, inverter datasheet, inverter output voltage, total inverter capacity, grid collection voltage, frequency, vector group, impedance requirement, tapping range, grounding arrangement, site ambient temperature, altitude, corrosion condition, dust or humidity level, loss requirement, applicable standard, grid connection requirements, and FAT requirements.
The following transformer products are commonly recommended for solar power plant projects. Final product configuration should be confirmed against inverter data, project specifications, and consultant approval.
Suitable for outdoor PV inverter stations and solar substations where inverter output voltage must be stepped up to medium-voltage collection systems.
Suitable for solar projects using 33kV medium-voltage collection systems and utility-scale PV power blocks.
Designed for renewable energy projects where transformer efficiency and long-term energy yield are important procurement considerations.
Suitable for solar farms in hot, dusty, humid, coastal, or corrosive environments where outdoor durability must be reviewed carefully.
Suitable for control buildings, O&M buildings, auxiliary distribution, and indoor service loads in solar power plants.
Background reading to help solar developers, EPC contractors, and consultants prepare a clearer transformer specification for PV power plant projects.
Step-Up Transformer Selection for Solar Power Plants
Learn how inverter output voltage, collection voltage, capacity, impedance, and vector group affect solar transformer selection.
33kV Transformer for Solar Projects
Understand key considerations for 33kV oil immersed transformers used in utility-scale solar farms and MV collection systems.
Low Loss Transformers and Solar Project Yield
Explains how transformer no-load loss and load loss affect long-term energy delivery and project economics.
Transformer Design for Hot and Corrosive Outdoor Sites
Learn how ambient temperature, dust, humidity, salt spray, coating, and sealing affect transformer configuration.
Documents Required for Solar Transformer Grid Connection
A practical checklist of transformer documents for EPC review, utility approval, FAT, commissioning, and project handover.
The following FAQs answer common questions from solar developers, EPC contractors, consultants, and procurement teams when selecting transformers for solar power plant projects.
Solar power plants commonly use oil immersed step-up transformers to raise inverter output voltage to the medium-voltage collection level, such as 10kV, 11kV, 22kV, or 33kV. These transformers are usually installed outdoors near inverter stations or in solar substations. Oil immersed transformers are preferred for most outdoor PV step-up applications because they offer suitable capacity, thermal performance, and outdoor installation capability. Dry type transformers may be used for auxiliary power, indoor control buildings, or fire-sensitive areas.
Oil immersed transformers are commonly used in solar farms because they are suitable for outdoor installation, medium-voltage step-up duty, continuous operation, and larger capacity requirements. Solar inverter stations are often exposed to high temperature, dust, humidity, and other outdoor conditions, so the transformer must have suitable cooling, tank design, sealing, and protection accessories. Oil immersed transformers can also be designed with low losses, which is important because transformer losses reduce the energy delivered to the grid over the project lifetime.
A step-up transformer in a solar power plant increases the AC voltage from the inverter output level to the medium-voltage collection level required by the plant electrical system or grid connection. For example, an inverter may output 690V or 800V, while the collection system may operate at 33kV. The transformer must match inverter capacity, voltage ratio, vector group, impedance, insulation level, grounding method, and protection design. Correct selection is important for efficient power collection and successful commissioning.
A 33kV solar transformer should be selected based on inverter output voltage, total inverter capacity, 33kV collection system requirements, insulation level, vector group, impedance, tapping range, grounding arrangement, losses, temperature rise, and outdoor site conditions. Grid connection requirements and utility specifications should also be reviewed. For outdoor solar farms, corrosion protection, high ambient temperature, dust, humidity, and maintenance access are important. Customers should provide the inverter datasheet and single-line diagram during quotation.
Transformer losses reduce the net electricity delivered from the solar power plant to the grid. No-load losses occur whenever the transformer is energized, while load losses increase with load current. Since solar projects are designed for long-term operation, even small differences in transformer losses can affect lifetime energy yield. It is useful to compare no-load loss, load loss, efficiency, and expected operating profile during procurement. A low-loss transformer may reduce energy loss over the project life, depending on the actual operating conditions and project economics.
For high-temperature solar sites, transformer selection should consider ambient temperature, solar radiation, altitude, ventilation, cooling method, temperature rise, oil temperature monitoring, and possible derating. Outdoor solar farms may expose transformers to heat, dust, and direct sunlight for long periods. The transformer tank, radiators, sealing, paint system, terminal box, and accessories should be suitable for the site environment. Customers should provide the maximum ambient temperature and environmental conditions during the RFQ stage so the thermal design can be reviewed properly.
Yes, dry type transformers can be used in solar power plants, but they are usually applied to auxiliary power systems, indoor control buildings, O&M buildings, or fire-sensitive electrical rooms rather than outdoor main step-up applications. Dry type transformers do not use insulating oil and can be equipped with temperature monitoring, enclosures, cooling fans, and alarm contacts. If a dry type transformer is used in a solar project, the installation environment, ventilation, dust level, enclosure protection, and ambient temperature should be carefully reviewed.
To prepare an accurate quotation, provide the project specification, single-line diagram, inverter datasheet, inverter output voltage, total inverter capacity, grid collection voltage, rated frequency, vector group, impedance requirement, tapping range, grounding method, site ambient temperature, altitude, humidity, dust or corrosion conditions, loss requirements, applicable standard, grid connection requirements, and FAT scope. Clear project data helps the supplier recommend a suitable transformer and prepare the documents needed for EPC and utility review.
