Transformer solutions for shopping malls, apartment buildings, mixed-use complexes, basement substations, equipment floors, and building electrical rooms.
We help developers, EPC contractors, MEP consultants, and property operators select suitable dry type or oil immersed transformers based on fire safety, noise control, ventilation, installation space, and project specifications.
Commercial and residential complexes usually prefer dry type or cast resin transformers for indoor electrical rooms, basement substations, and equipment floors because they are oil-free, lower maintenance, and easier to coordinate with fire safety requirements in occupied buildings. Low-noise design, IP enclosure, ventilation, temperature monitoring, cable entry direction, and accurate drawings are important. Oil immersed transformers may be used in outdoor standalone substations where local fire and building codes allow.
Commercial and residential complexes need transformers to supply power for apartments, retail shops, offices, parking areas, elevators, escalators, lighting, HVAC, water pumps, fire protection systems, security systems, EV charging areas, and public facilities. In mixed-use developments, load types are diverse and may change as tenants, shops, and building services are upgraded.
Unlike a standalone industrial plant, these buildings are occupied by residents, customers, staff, and visitors. Transformer selection must consider public safety, fire protection, noise, vibration, room ventilation, maintenance convenience, and acceptance by the developer, consultant, authority, and property management team.
Many transformers in commercial and residential complexes are installed in basements, equipment floors, or indoor electrical rooms where space is limited. If transformer dimensions, enclosure layout, cable entry, ventilation, and maintenance clearance are not confirmed early, the project may face installation changes, overheating issues, noise complaints, or delayed handover.
Commercial and residential complexes include residential apartments, retail shops, offices, parking systems, HVAC, elevators, escalators, lighting, pumps, fire systems, security systems, and building management systems. Transformers provide the required voltage level and capacity for safe power distribution.

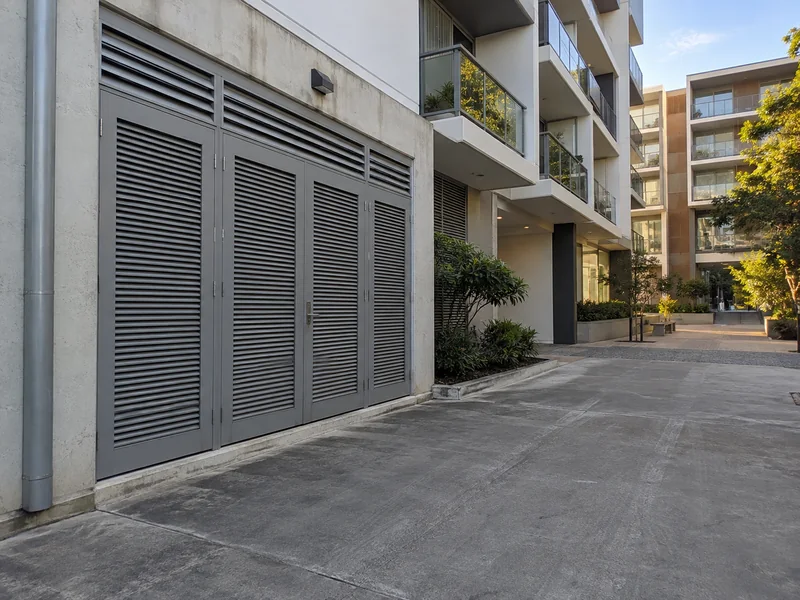

Building electrical rooms are often located indoors or in basements. Dry type transformers are commonly preferred because they do not use insulating oil and are easier to coordinate with fire safety expectations in occupied buildings.
Transformer noise may affect apartment units, hotel rooms, offices, retail spaces, or public areas. Sound level should be reviewed during selection, especially when the transformer room is close to occupied spaces.
Basement transformer rooms may have limited natural ventilation. Transformer losses, temperature rise, cooling method, enclosure design, and room airflow must be coordinated to reduce overheating risk.
After handover, property management teams may have limited technical maintenance resources. Dry type transformers with temperature monitoring and clear O&M documents can help simplify routine inspection and maintenance.
A typical commercial and residential complex power system includes utility incoming supply, medium-voltage switchgear, transformers, low-voltage main distribution boards, tenant distribution boards, apartment floor panels, mechanical load panels, emergency power systems, fire systems, and building management systems.
Transformers are usually located in basement substations, ground-floor electrical rooms, equipment floors, podium areas, or outdoor standalone substations. The arrangement depends on utility requirements, building layout, fire safety design, noise control, ventilation, and maintenance access.
The building complex receives power from the local utility grid, usually through medium-voltage feeders for larger developments.
MV switchgear provides incoming protection, isolation, metering, and feeder control before power is supplied to transformers.
The transformer steps down medium voltage to the low-voltage distribution level used by the building, such as 400V, 415V, 480V, or another local voltage.
LV switchboards distribute power to residential panels, retail areas, HVAC equipment, elevators, pumps, lighting, and essential building services.
Chillers, fans, pumps, smoke extraction systems, fire pumps, and water supply systems may require dedicated feeders or transformer capacity review.
Power is distributed to apartments, shops, offices, parking facilities, common areas, and tenant distribution boards.
Generators, ATS panels, UPS systems, emergency lighting, fire alarm systems, and security systems may be coordinated with the main building distribution system.
Engineering Notes
In commercial and residential complexes, transformers are typically installed between MV switchgear and LV main distribution boards. Their location and configuration must be coordinated with fire safety design, ventilation, cable routing, equipment room layout, lifting access, acoustic requirements, and maintenance clearance.
Dry type transformers are usually preferred for indoor rooms, basements, and equipment floors because they reduce oil-related fire and leakage concerns. Oil immersed transformers may be used for outdoor independent substations or utility-side applications if local building codes, fire regulations, and site design allow.
Transformer selection for commercial and residential complexes should not be based only on rated capacity. The correct choice depends on installation location, fire safety requirements, noise sensitivity, room ventilation, load profile, maintenance strategy, enclosure requirements, cable entry direction, local building code, utility requirements, and consultant specifications.
Dry type and cast resin transformers are commonly selected for indoor substations in occupied buildings. Oil immersed transformers may be suitable for outdoor substations or dedicated transformer houses, but their use inside residential or commercial buildings should be carefully reviewed against fire safety and leakage risk.
Oil immersed transformers may be suitable for commercial and residential complex projects when installed outdoors, in a standalone transformer house, or in a utility-approved substation area with proper oil containment, fire separation, ventilation, and maintenance access. They may be considered for upstream power supply, outdoor utility intake, or cost-sensitive applications where local codes allow oil-filled equipment.
Oil immersed transformers can provide efficient operation, high capacity options, and practical outdoor performance. However, in occupied building environments, their use must be reviewed carefully because oil leakage, fire protection, environmental protection, insurance requirements, and authority approval can become major concerns.
For basement substations, indoor electrical rooms, and equipment floors, oil immersed transformers are generally not the preferred option unless the project specification and local authority clearly permit them with suitable protection measures.
Dry type transformers, especially cast resin transformers, are highly suitable for commercial and residential complexes. They are commonly used in basement substations, indoor electrical rooms, equipment floors, shopping mall substations, apartment building distribution rooms, and mixed-use building power systems.
Dry type transformers are oil-free, lower maintenance, and easier to coordinate with indoor fire safety requirements. They can be equipped with IP enclosures, low-noise design, temperature controllers, PT100 sensors, cooling fans, alarm contacts, trip contacts, anti-vibration pads, and flexible cable entry arrangements.
However, dry type transformers still require careful review of ventilation, temperature rise, losses, sound level, enclosure protection, humidity, dust, room clearance, and maintenance access. Poor room ventilation or ignored noise limits may cause problems after building occupancy.
| Factor | Oil Immersed | Dry Type | Recommendation |
|---|---|---|---|
| Indoor Building Installation | Usually not preferred due to oil leakage and fire safety concerns | Suitable for basements, equipment rooms, and indoor substations | Dry type is usually preferred for occupied buildings |
| Fire Safety | Requires oil containment, fire separation, and authority review | No insulating oil, easier for indoor fire safety coordination | Use dry type where fire safety is a key requirement |
| Noise Control | Often easier to isolate outdoors or in standalone rooms | Low-noise dry type designs are available for indoor use | Specify sound level limits for residential and mixed-use projects |
| Maintenance | Requires oil inspection, leakage checks, and oil-related maintenance | Lower routine maintenance, mainly cleaning and temperature checks | Dry type is practical for property management teams |
| Space Limitation | May require more safety clearance and oil containment space | Can be integrated into indoor electrical rooms with enclosure options | Confirm GA drawing, cable entry, and installation clearance early |
| Ventilation | Outdoor cooling is easier, but indoor use is more complex | Requires room airflow and heat dissipation review | Check transformer losses and room ventilation before approval |
| Outdoor Standalone Substation | Suitable when local codes and site design allow | Possible if protected, but less common for outdoor high-capacity duty | Oil immersed may be considered for outdoor utility substations |
| Approval Process | May require more review for indoor or public building use | Often easier for consultant and authority approval indoors | Follow local building code, utility rules, and project specification |
Selection Summary
For most commercial and residential complexes, dry type or cast resin transformers are the preferred solution for indoor electrical rooms, basement substations, equipment floors, and building-integrated distribution systems. They support fire safety expectations, reduce oil-related maintenance, and can be configured for low noise, IP enclosure protection, temperature monitoring, and limited installation space.
Oil immersed transformers may be considered for outdoor standalone substations or utility-side supply areas where local regulations and site design allow. Final selection should be based on project specification, local fire code, utility requirements, installation location, noise limits, ventilation, load schedule, enclosure requirements, and long-term property maintenance needs.
For commercial and residential complex projects, transformer procurement is closely linked to building approval, resident comfort, fire safety, installation coordination, and long-term property operation. Developers and property teams are usually more concerned about safe handover, low maintenance, noise control, overheating risk, and complaint avoidance than the transformer price alone.
The transformer room may be located inside a basement or near public areas, making oil leakage and oil-related fire risk unacceptable.
We recommend dry type or cast resin transformers for indoor building substations where oil-free operation and fire safety coordination are important.
Transformer noise may affect apartments, shops, offices, hotel rooms, or public areas after the building is occupied.
We can review low-noise transformer design, sound level limits, anti-vibration options, enclosure selection, and installation location during the quotation stage.
Basement electrical rooms often have limited space for transformer installation, cable routing, ventilation, and maintenance access.
We provide accurate GA drawings, dimensions, enclosure layout, terminal arrangement, cable entry direction, lifting information, and clearance requirements.
If transformer losses and room ventilation are not reviewed, the transformer may overheat or trigger temperature alarms during operation.
We help review transformer losses, cooling method, temperature rise, room ventilation, enclosure type, fan options, and temperature monitoring.
Property management teams may not have the ability or budget for frequent oil testing or complex transformer maintenance.
We recommend low-maintenance dry type solutions with temperature monitoring, clear O&M manuals, alarm contacts, and practical inspection guidance.
The consultant may question losses, noise, temperature rise, ventilation, fire safety, cable entry, or maintenance clearance.
We provide technical datasheets, GA drawings, foundation drawings, sound level data if required, routine test reports, wiring diagrams, and compliance documents.
Wrong cable entry direction, foundation details, enclosure size, or lifting route may cause site modification and project delay.
We confirm cable entry, terminal direction, foundation dimensions, transformer weight, lifting points, and installation clearance before production approval.
Transformer selection for commercial and residential complexes often fails when the project team focuses only on kVA rating and price. In occupied buildings, fire safety, noise, ventilation, enclosure layout, maintenance access, and approval documents are just as important as electrical capacity.
Rated capacity does not confirm suitability for ventilation, sound level, fire safety, losses, enclosure size, cable entry, or maintenance access.
Review capacity together with installation location, room layout, ventilation, noise requirement, enclosure design, and project specification.
Transformer sound may cause complaints from residents, tenants, retail operators, or hotel guests after occupancy.
Define sound level limits early and consider low-noise transformer design, anti-vibration pads, room location, and acoustic treatment.
Dry type transformers release heat into the room. Poor ventilation can cause overheating, shortened service life, or nuisance alarms.
Coordinate transformer losses, temperature rise, fan operation, room airflow, ambient temperature, and enclosure clearance with the MEP team.
Oil-filled transformers inside occupied buildings may create fire safety, leakage, insurance, and authority approval problems.
Use dry type transformers for indoor substations unless local regulations and project design clearly permit oil immersed equipment.
Wrong cable entry direction or terminal position may conflict with cable trenches, bus ducts, switchgear, or room layout.
Confirm MV/LV terminal positions, top or bottom cable entry, cable box arrangement, busbar interface, and installation drawings before manufacturing.
After building handover, limited access can make inspection, cleaning, fan replacement, and temperature controller maintenance difficult.
Check access clearance, enclosure doors, fan location, monitoring devices, terminal boxes, and maintenance route during design review.
Missing drawings, test reports, manuals, or compliance documents can delay consultant approval, building acceptance, or property handover.
Confirm the document list at RFQ stage, including GA drawing, foundation drawing, routine test report, wiring diagram, and O&M manual.
Commercial and residential complex transformer projects involve developers, EPC contractors, MEP consultants, property management teams, and sometimes utility or fire authorities. Each stakeholder reviews the transformer from a different perspective, including safety, cost, installation, approval, operation, and resident comfort.
Building approval, fire safety, handover schedule, resident comfort, long-term reliability, and lifecycle maintenance cost.
A transformer solution that supports smooth approval, safe indoor installation, low complaints, and practical long-term property operation.
Equipment room layout, cable entry, lifting route, foundation, ventilation, delivery schedule, switchgear interface, and site installation.
Accurate GA drawings, foundation drawings, terminal arrangement, dimensions, weight, cable entry details, and installation guidance.
Specification compliance, capacity, voltage ratio, vector group, impedance, losses, temperature rise, sound level, ventilation, and fire safety.
Complete datasheets, technical drawings, routine test reports, sound level data if required, compliance statements, and accessory details.
Low maintenance, safe inspection, temperature alarms, fan operation, cleaning, access clearance, noise, and spare parts.
O&M manual, temperature controller details, alarm and trip contact wiring, maintenance checklist, spare parts guidance, and accessible layout.
Fire safety, oil leakage risk, equipment room design, emergency access, ventilation, and compliance with local building codes.
Transformer type confirmation, oil-free design information, enclosure details, installation layout, and relevant compliance documents.
Technical compliance, quotation clarity, delivery risk, document completeness, inspection requirements, packing, and commercial scope.
A clear technical proposal, supply scope, document list, delivery plan, packing details, and confirmed project responsibilities.
The following configurations are general references for commercial and residential complex transformer applications. Final selection should be confirmed according to project specification, local building code, utility requirements, fire safety design, load schedule, room layout, ventilation, sound level limits, consultant comments, and owner requirements.
Basement substation or indoor electrical room in apartment or mixed-use complex
Residential tower or hotel area with strict noise requirements
Shopping mall, retail podium, or commercial zone distribution
HVAC, pumps, elevators, escalators, and mechanical loads
Outdoor standalone transformer house or utility-side substation
Configuration Notes
The above configurations are preliminary references only. Final transformer type, rated capacity, voltage ratio, vector group, impedance, insulation level, cooling method, enclosure rating, temperature rise, sound level, loss level, cable entry direction, monitoring accessories, fire safety requirements, test scope, and document package should be confirmed according to project specification, single-line diagram, utility requirements, local building code, installation environment, consultant comments, and owner approval.
For commercial and residential complex projects, transformer documents are essential for consultant review, authority approval, MEP coordination, factory acceptance, site installation, property handover, and future maintenance. Complete documentation helps reduce approval delays, installation errors, and handover disputes.
Includes rated capacity, voltage ratio, frequency, vector group, impedance, insulation level, cooling method, temperature rise, losses, sound level, enclosure, accessories, and applicable standards.
Shows transformer dimensions, weight, lifting points, enclosure details, terminal arrangement, cable entry direction, accessories, and required maintenance clearance.
Provides base dimensions, fixing points, floor loading, installation footprint, ventilation clearance, and civil or MEP coordination information.
Shows MV and LV terminal positions, top or bottom cable entry, cable box arrangement, terminal clearance, and switchgear or bus duct interface.
Confirms rated electrical parameters, voltage ratio, vector group, impedance, cooling method, standard reference, weight, and transformer identification data.
Helps confirm transformer position in the building power system and coordination with MV switchgear, LV switchboards, generators, UPS systems, and downstream loads.
Records factory test results such as winding resistance, voltage ratio, vector group, impedance, load loss, no-load loss, insulation resistance, applied voltage test, and induced voltage test.
Provides supporting evidence for temperature rise, lightning impulse, partial discharge for dry type transformers, sound level, or short-circuit withstand where required.
Provides measured sound level data for residential, hotel, or mixed-use projects with acoustic requirements.
Shows wiring for PT100 sensors, temperature controller, cooling fan control, alarm contacts, trip contacts, terminal blocks, and monitoring interfaces.
Lists temperature controllers, PT100 sensors, cooling fans, alarm contacts, trip contacts, enclosure details, anti-vibration accessories, and optional monitoring devices.
Confirms compliance with project specifications, local standards, consultant requirements, and declared deviations if any.
Provides guidance for transportation, storage, lifting, installation, ventilation, energization, inspection, cleaning, maintenance, and safety precautions.
Defines FAT test items, witness points, acceptance criteria, inspection responsibilities, standards, and reporting format before shipment.
Includes approved drawings, final datasheets, test reports, manuals, inspection records, packing list, spare parts information, and property handover documents.
Routine tests should be performed according to the agreed standard and project specification. Typical tests include winding resistance, voltage ratio, vector group, impedance, load loss, no-load loss, insulation resistance, applied voltage test, and induced voltage test.
The transformer should be checked against approved drawings, including dimensions, enclosure, terminal arrangement, cable entry, accessories, lifting points, nameplate, and installation interface.
PT100 sensors, temperature controller, cooling fans, alarm contacts, trip contacts, fan status signals, and terminal wiring should be checked according to approved wiring diagrams.
For residential, hotel, or noise-sensitive mixed-use buildings, sound level testing may be included in the FAT or inspection scope according to project specifications.
Before shipment, packing condition, accessory boxes, spare parts, manuals, document package, shipping marks, and handling instructions should be verified to reduce site receiving and handover issues.
Approval Notes
For an accurate transformer proposal, customers are encouraged to provide the project specification, single-line diagram, load schedule, voltage ratio, rated capacity, frequency, vector group, impedance requirement, installation location, room layout, ventilation condition, ambient temperature, enclosure requirement, cable entry direction, sound level limit, fire safety requirement, monitoring signal list, applicable standards, FAT scope, document list, consultant comments, utility requirements, and local building code requirements.
The following transformer products are commonly recommended for commercial and residential complex power distribution. Final product configuration should be confirmed against project specifications, consultant comments, and owner requirements.
Suitable for commercial complexes, residential towers, mixed-use developments, basement substations, and indoor electrical rooms where fire safety and low maintenance are important.
Designed for apartments, hotels, mixed-use buildings, and commercial spaces where transformer noise should be controlled.
Suitable for indoor building substations where enclosure protection, cable entry arrangement, and room layout coordination are required.
Suitable for basement, equipment floor, and indoor substations requiring oil-free transformer design and low fire risk.
Suitable for outdoor standalone transformer houses or utility-side substations where oil immersed equipment is permitted by local code and project design.
Background reading to help developers, EPC contractors, MEP consultants, and property teams prepare a clearer transformer specification for commercial and residential complex projects.
Dry Type Transformer for Building Electrical Rooms
Learn why dry type and cast resin transformers are commonly used in basement substations and indoor building distribution rooms.
Low Noise Transformer Selection for Residential Buildings
Understand how transformer sound level, vibration, enclosure design, and room location affect resident comfort and complaint risk.
Fire Safe Transformer Selection for Occupied Buildings
Learn why oil-free transformer design is important for indoor substations, basements, and public building applications.
Transformer Ventilation Requirements for Basement Rooms
A practical guide to heat dissipation, transformer losses, airflow, enclosure design, and temperature monitoring.
Transformer Documents Required for Building Project Approval
A checklist of datasheets, GA drawings, foundation drawings, test reports, wiring diagrams, O&M manuals, and handover files.
The following FAQs answer common questions from developers, EPC contractors, MEP consultants, property teams, and procurement managers when selecting transformers for commercial and residential complexes.
Dry type transformers, especially cast resin transformers, are commonly used in commercial and residential complexes because they are suitable for indoor electrical rooms, basement substations, and equipment floors. They do not use insulating oil, which helps reduce oil leakage and oil-related fire concerns in occupied buildings. They can also be supplied with IP enclosures, temperature controllers, cooling fans, alarm contacts, trip contacts, and low-noise design. Oil immersed transformers may be used for outdoor standalone substations where local codes allow.
Dry type transformers are often preferred for basement substations because they are oil-free, lower maintenance, and easier to coordinate with indoor fire safety requirements. Basement transformer rooms are usually close to occupied areas and may have limited ventilation and access. Dry type transformers reduce oil leakage concerns, but they still require proper airflow, clearance, temperature monitoring, and enclosure design. The project team should review room layout, cable entry, losses, temperature rise, sound level, and maintenance access before final approval.
Transformer noise can be reduced by specifying low-noise transformer design, selecting a suitable installation location, using anti-vibration pads, reviewing enclosure design, and coordinating acoustic treatment where needed. Noise limits should be discussed during the RFQ stage, especially when the transformer room is near apartments, hotel rooms, offices, shops, or public spaces. It is also important to review room structure, ventilation openings, and equipment layout because site installation conditions can influence the final noise level experienced by occupants.
Before installation, the project team should check transformer dimensions, weight, lifting route, foundation, floor loading, cable entry direction, terminal arrangement, ventilation, ambient temperature, enclosure protection, access clearance, sound level, fire safety requirements, and maintenance space. For dry type transformers, airflow and heat dissipation are especially important. Approved GA drawings and foundation drawings should be compared with actual site conditions before delivery to reduce installation changes and project delays.
Oil immersed transformers can be used in commercial or residential complex projects when they are installed outdoors, in standalone transformer houses, or in utility-side substations where local codes and project design allow. They may be suitable for cost-sensitive or high-capacity applications outside the building. However, for indoor substations, basement rooms, and areas near occupants, dry type transformers are usually preferred because they avoid insulating oil and reduce fire and leakage concerns. The final choice should follow local fire codes, utility rules, and consultant approval.
Dry type transformers release heat into the surrounding room, so ventilation is important for stable operation. If airflow is insufficient, the transformer may operate at a higher temperature, trigger alarms, or experience reduced service life. The project team should review transformer losses, temperature rise, cooling method, enclosure type, clearance, room ambient temperature, air inlet and outlet arrangement, and fan operation. Ventilation design should be coordinated with the MEP team before transformer drawings are approved.
Common documents include the technical datasheet, general arrangement drawing, foundation or installation drawing, cable entry drawing, nameplate drawing, routine test report, wiring diagram, accessory list, compliance statement, installation manual, maintenance manual, and FAT procedure. For residential or noise-sensitive projects, sound level test data may also be requested. These documents help the consultant, developer, EPC contractor, authority, and property team review technical compliance, installation interface, fire safety, and handover requirements.
To prepare an accurate quotation, provide the project specification, single-line diagram, load schedule, rated capacity, voltage ratio, frequency, vector group, impedance requirement, installation location, room layout, ventilation condition, ambient temperature, enclosure requirement, cable entry direction, sound level limit, fire safety requirement, monitoring signal list, applicable standards, FAT scope, document list, consultant comments, utility requirements, and local building code requirements. Clear information helps avoid incorrect selection and approval delays.
Send your voltage, capacity, cooling preference, and destination country. Our engineers reply with FOB / CIF pricing, lead time, and recommended configuration within 24 hours.
