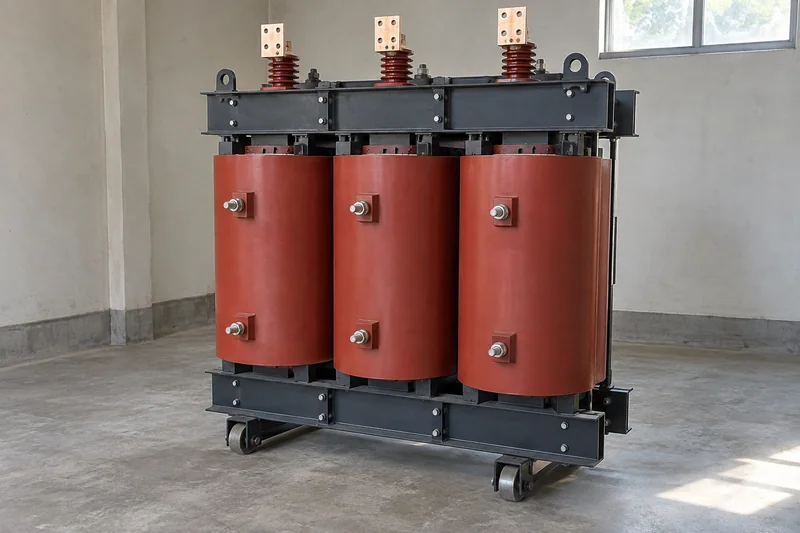

800 kVA Dry-Type Transformer
Request a 800 kVA dry-type transformer quotation for your project. When 800 kVA appears in a building schedule, separate the initial occupied load from later tenant or process additions. Record the demand assumptions used by the electrical designer. Confirm the voltage ratio, installation and accessory scope against the actual duty; the fields below distinguish the requested capacity from project-specific engineering inputs.
- Rated capacity800 kVA
Specifications
800 kVA - Reference schedule for quotation · Revision 2. Confirmed values apply as listed. Configuration options and project confirmation items are settled in the quotation for your specification.
| Parameter | Value | Status |
|---|---|---|
| Rated capacity | 800 kVA | Confirmed |
| Reference data basis | BEZ aTSE 788/10Third-party published reference design for preliminary comparison, not Zoe guaranteed performance. Source and limitations are in the linked reference sheet. | Project confirmation |
| Reference voltage ratio | 10 / 0.4 kV10/0.4 kV is a reference selection within the source ranges. Reference facts are not Zoe tested performance. | Project confirmation |
| Reference frequency | 50 HzSelected reference duty, not a dual-frequency nameplate. The project offer must match the actual supply. | Project confirmation |
| Reference phases | Three phaseBalanced three-phase reference selection. | Project confirmation |
| Reference connection group | Dyn family; clock number specified by projectCompare neutral, earthing, phase displacement and parallel-operation requirements before ordering. | Project confirmation |
| Reference cooling | AN (natural air)Reference arrangement only. No fan-assisted overload allowance is implied. | Project confirmation |
| Reference tapping | De-energized HV links, +/-2 x 2.5% reference selectionAdjustment is de-energized; not automatic on-load voltage regulation. | Project confirmation |
| Reference impedance | 6%At 120 C in the BEZ table. | Project confirmation |
| Reference no-load loss | 1,170 WPublished value for the named reference design; not a Zoe test result or purchase guarantee. | Project confirmation |
| Reference load loss | 8,000 W at 120 CUse the listed 120 C correction basis. BEZ also publishes a separate 75 C number; do not interchange them. | Project confirmation |
| Reference overall envelope | 1470 x 980 x 1780 mmSource A x B x C envelope without enclosure. A new enclosure, terminal box or alternative winding design changes size and mass. | Project confirmation |
| Reference total mass | 2,255 kgTotal mass of the cited reference design. Shipping splits and the offered assembly may differ. | Project confirmation |
| Reference enclosure | Without enclosure (IP00)The published envelope excludes an added protective enclosure. Room and project protection requirements govern the offered assembly. | Project confirmation |
| Reference site conditions | Up to 40 C ambient; altitude up to 1000 mSource normal-service limits, not approval for all sites. Higher altitude, heat, harmonics or unusual duty require a different design review. | Project confirmation |
| LV current calculation at 400 V | Approximately 1,155 ACalculated from 800 kVA / (sqrt(3) x 0.4 kV). This is not a cable or protection selection. | Project confirmation |
- Confirmed Applies to this configuration as listed
- Configuration option Choose in your inquiry; reviewed for the quotation
- Project confirmation Fixed by your specification and the technical agreement
Attach your specification or nameplate and the reply will follow this parameter schedule.
Structure And Details
Additional views of 800 kVA - Reference schedule for quotation. Final outline, terminals and fittings follow the agreed configuration.
Where This Configuration Fits
When 800 kVA appears in a building schedule, separate the initial occupied load from later tenant or process additions. Record the demand assumptions used by the electrical designer.
A staged building load schedule: Do not treat fans as a substitute for an unresolved future-load allowance. Natural-air and fan-assisted duties need their own declared conditions, temperature limits and auxiliary arrangements. A capacity match alone does not establish electrical compatibility or suitability for the installation.
Installation And Operating Conditions
Check these points before fixing the layout or approving the foundation. Final clearances and interfaces come from the configuration-specific outline.
Installation And Interfaces
Do not treat fans as a substitute for an unresolved future-load allowance. Natural-air and fan-assisted duties need their own declared conditions, temperature limits and auxiliary arrangements.
Provide a dimensioned room layout, delivery openings, floor-loading limits and the HV/LV cable or busduct approach. Coordinate enclosure airflow and maintenance access with the room design; dimensions from another unit are not an installation approval.
Operating Conditions
Describe the ambient temperature range, altitude, expected load profile and exposure to dust, moisture, salt or other site conditions. Include important starting events and nonlinear loads. These inputs can change the engineering review even when the requested capacity stays the same.
For indoor service, provide the ventilation concept and nearby heat sources. If fans or temperature monitoring are requested, define the auxiliary supply and alarm/trip interfaces. Room heat removal must be coordinated with the quoted losses.
What The Quotation Covers
To prepare an 800 kVA quotation tied to the agreed load stage and cooling duty, send the requested 800 kVA rating, HV/LV voltages, frequency, quantity and project destination. Attach the specification or provide its relevant requirements in your message.
Separate the transformer and agreed accessories from switching equipment, external cables or busduct, foundations, installation and commissioning by others. Request a parameter and deviation schedule with the quotation, then agree the outline and document stages for the order.
Documents
-
Reference parameter sheet and envelope · Rev. REF-1
Attributed third-party reference values and a simplified bounding envelope. Not a factory-guaranteed datasheet, fabrication drawing or installation approval.
Download
How To Start Your Inquiry
Distributors: state the order quantity, destination and which specifications must repeat across units. EPC teams: include the technical schedule, document milestones and scope boundaries. Plant teams: provide the existing nameplate and changed load or installation conditions for replacement work.
If the voltage or installation arrangement is not yet fixed, describe what is known and ask for selection advice. No configuration needs to be preselected to start an inquiry.
Send the specification you have today. A partial one is fine: the reply lists what still needs confirming before the quotation is comparable.
Request a QuotationBefore You Send The Inquiry
Is 800 kVA the same as 800 kW?
No. kVA is apparent power; kW depends on power factor. At an assumed power factor of 0.8, 800 kVA corresponds to 640 kW. This calculation is not a complete sizing check: starting duty, harmonics, ambient conditions and operating requirements also need review.
What LV current should I use when discussing this 800 kVA unit?
For a balanced three-phase calculation, 800 kVA gives approximately 1,155 A at 400 V or 1,113 A at 415 V. State the actual secondary voltage. Cable, busbar, switchgear and protection selection require the applicable design calculations and installation conditions.
What should be settled before comparing quotations?
Use an 800 kVA quotation tied to the agreed load stage and cooling duty as the comparison basis. Do not treat fans as a substitute for an unresolved future-load allowance. Natural-air and fan-assisted duties need their own declared conditions, temperature limits and auxiliary arrangements.
Are dimensions, losses and accessories fixed by this capacity page?
No. Request the values and included accessories for the proposed voltage, construction and cooling duty. Keep the electrical schedule, outline and commercial scope tied to the same offered configuration and revision.
Send Your Project Requirements
Share what you know about the project and the reply will follow the parameter schedule above. No configuration selected means you want selection advice, which is fine.
- Rated capacity and voltage ratio
- Frequency, quantity and destination
- Project specification, or the existing nameplate for a replacement
- Site conditions, room or outdoor layout and delivery route
